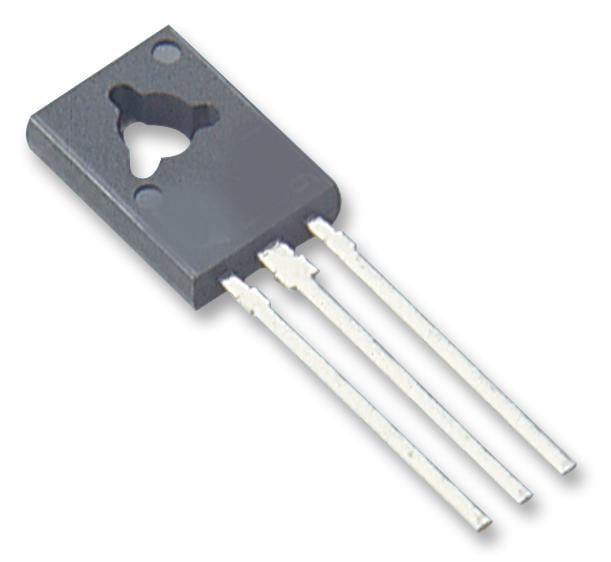

MULTICOMP PRO - BD139-10 - Bipolar (BJT) Single Transistor, NPN, 80 V, 1.5 A, 12.5 W, TO-126, Through Hole
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 80V
- Transition Frequency ft: -
- Power Dissipation Pd: 12.5W
- DC Collector Current: 1.5A
- DC Current Gain hFE: 63hFE
- Transistor Case Style: TO-126
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Av Current Ic: 1.5A
- Collector Emitter Saturation Voltage Vce(on): 500mV
- Continuous Collector Current Ic Max: 1.5A
- Current Ic Continuous a Max: 1.5A
- Current Ic hFE: 150mA
- Full Power Rating Temperature: 25°C
- Hfe Min: 63
- No. of Transistors: 1
- Operating Temperature Min: -55°C
- Power Dissipation Ptot Max: 12.5W
- Termination Type: Through Hole
- Voltage Vcbo: 100V
