Description

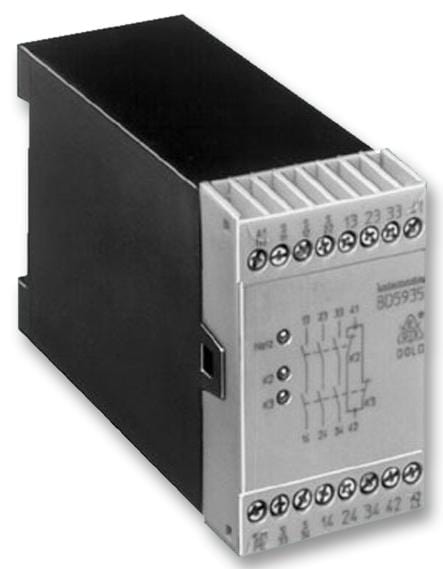

DOLD - BD 5935.48 DC 24V - Safety Relay, 24 VDC, 3PST-NO, SPST-NC, BD 5935, DIN Rail, 5 A, Screw
- Coil Voltage: 24VDC
 - Contact Configuration: 3PST-NO, SPST-NC
 - Product Range: BD 5935 Series
 - Relay Mounting: DIN Rail
 - Contact Current: 5A
 - Relay Terminals: Screw
 - Contact Voltage AC Nom: 250V
 - Contact Voltage DC Nom: -
 - Contact Material: -
 - IP Rating: IP20, IP40
 - SVHC: No SVHC (15-Jan-2018)
 - Approval Bodies: BG, CSA, UL
 - Coil Voltage VAC Nom: 230V
 - Coil Voltage VDC Nom: 24V
 - Contact Current AC Max: 5A
 - Contact Current Max: 5A
 - Contact Voltage AC Max: 230V
 - External Depth: 121mm
 - External Height: 74mm
 - External Length / Height: 74mm
 - External Width: 45mm
 - Operating Temperature Max: 55°C
 - Operating Temperature Min: -15°C
 - Supply Frequency: 50Hz
 - Switch Current Max: 10A
 - Switching Current Max: 10A
 - Type: 0045456
