PC Board
SAMTEC Board-to-Board BCS-110-L-S-HE . RECEPTACLE, 2.54MM, HORZ, 10WAY SAMTEC 1667475 BCS-110-L-S-HE .
Roll over image to zoom in Click on image to zoom
SAMTEC Board-to-Board BCS-110-L-S-HE . RECEPTACLE, 2.54MM, HORZ, 10WAY SAMTEC 1667475 BCS-110-L-S-HE .

BCS-110-L-S-He . Receptacle, 2.54mm, HORZ, 10WAY Samtec

SAMTECSKU: BCS-110-L-S-HE . Order code: 1667475
Price:
€4,11

Tax included Shipping calculated at checkout

Stock:
Sold out

Documents et téléchargements

Description

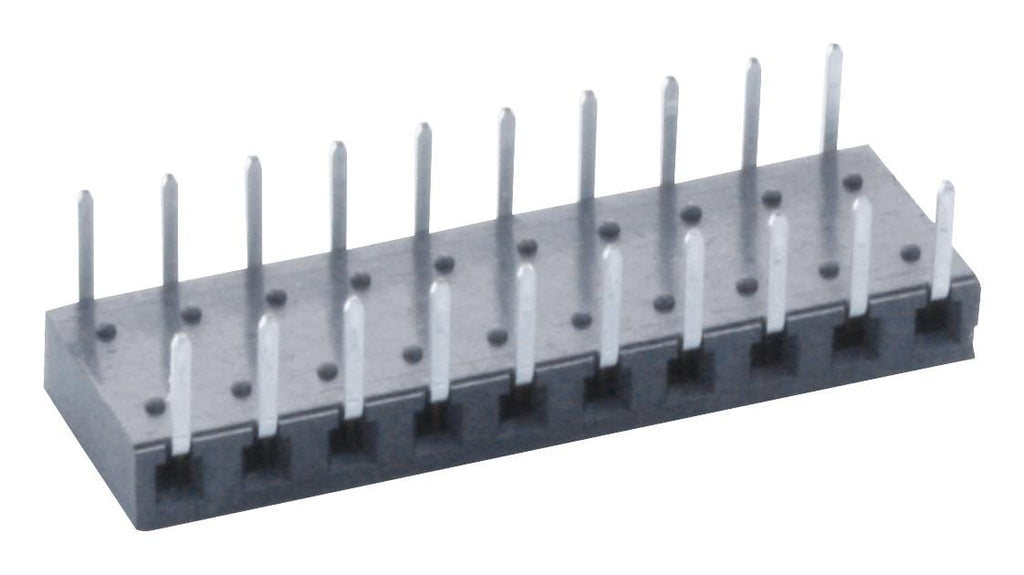

SAMTEC - BCS-110-L-S-HE . - PCB Receptacle, Board-to-Board, 2.54 mm, 1 Rows, 10 Contacts, Through Hole Mount, Tiger Claw BCS

  • Pitch Spacing: 2.54mm
  • No. of Contacts: 10Contacts
  • Gender: Receptacle
  • Product Range: BCS Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 1Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Phosphor Bronze
  • SVHC: No SVHC (15-Jan-2018)
  • Colour: Black
  • Contact Termination: Through Hole Right Angle
  • Current Rating: 3A
  • External Width: 7.87mm
  • Lead Spacing: 2.54mm
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Termination Method: Solder
