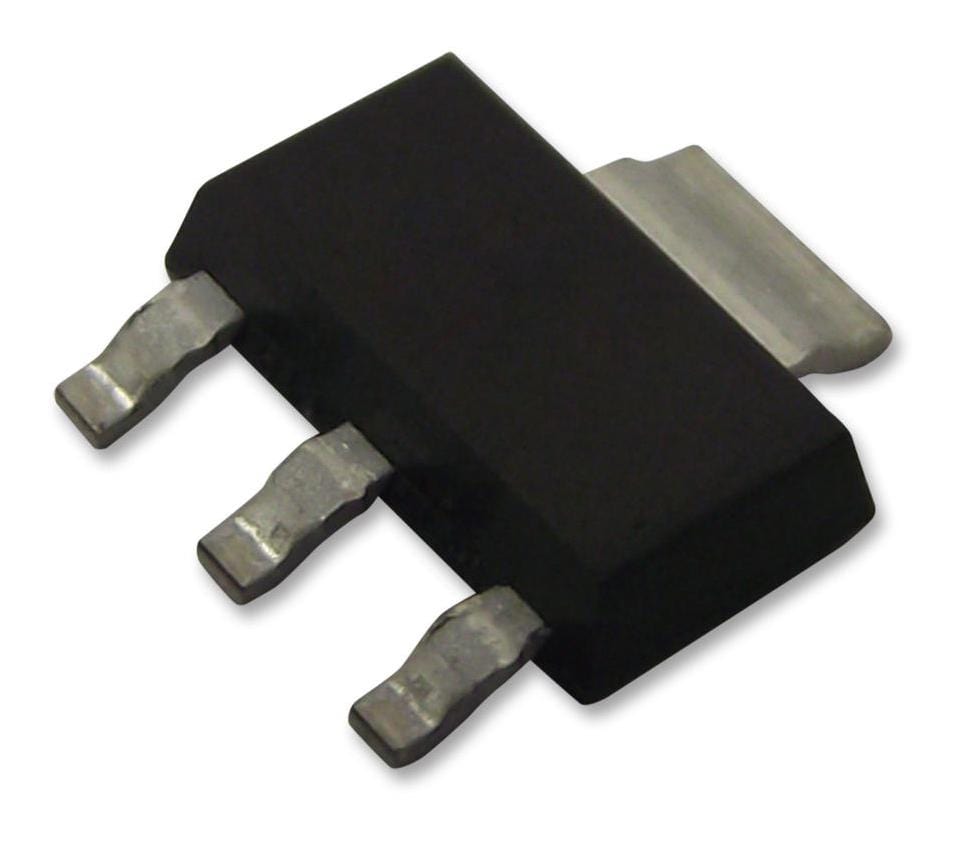

ONSEMI - BCP55 - Bipolar (BJT) Single Transistor, General Purpose, NPN, 60 V, 1.5 A, 1.5 W, SOT-223, Surface Mount
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 60V
- Transition Frequency ft: -
- Power Dissipation Pd: 1.5W
- DC Collector Current: 1.5A
- DC Current Gain hFE: 25hFE
- Transistor Case Style: SOT-223
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Application Code: GP
- Av Current Ic: 1A
- Collector Emitter Saturation Voltage Vce(on): 500mV
- Continuous Collector Current Ic Max: 1.5A
- Current Ic Continuous a Max: 1.5A
- Current Ic hFE: 150mA
- Hfe Min: 40
- No. of Transistors: 1
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Power Dissipation Ptot Max: 1W
- SMD Marking: BCP55
- Voltage Vcbo: 60V
