Description

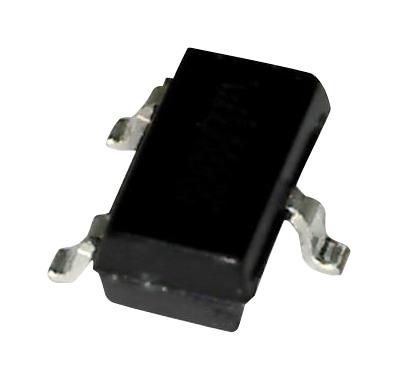

NEXPERIA - BAW156,215 - Small Signal Diode, Dual Common Anode, 85 V, 140 mA, 1.25 V, 3 µs, 4 A
- Diode Configuration: Dual Common Anode
- Repetitive Reverse Voltage Vrrm Max: 85V
- Forward Current If(AV): 140mA
- Forward Voltage VF Max: 1.25V
- Reverse Recovery Time trr Max: 3µs
- Forward Surge Current Ifsm Max: 4A
- Operating Temperature Max: 150°C
- Diode Case Style: TO-236AB
- No. of Pins: 3Pins
- Product Range: BAW15 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Diode Type: Switching
