NEXPERIA - BAT754,215 - Small Signal Schottky Diode, Single, 30 V, 200 mA, 340 mV, 600 mA, 125 °C
- Diode Configuration: Single
- Repetitive Reverse Voltage Vrrm Max: 30V
- Forward Current If(AV): 200mA
- Forward Voltage VF Max: 340mV
- Forward Surge Current Ifsm Max: 600mA
- Operating Temperature Max: 125°C

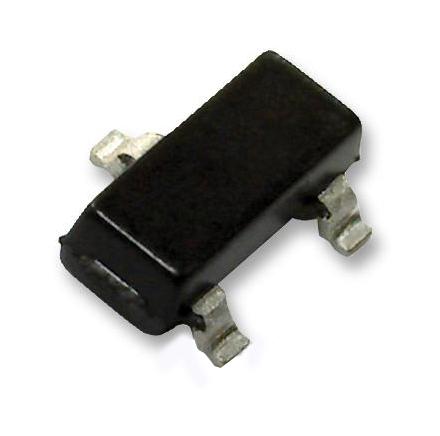

- Diode Case Style: SOT-23
- No. of Pins: 3Pins
- Product Range: BAT754 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Current If @ Vf: 10mA
- Current Ifsm: 600mA
- Diode Type: Schottky
- Forward Voltage: 800mV
- Junction Temperature Tj Max: 125°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +125°C
- Pin Configuration: 1A,,2NC,3K
- SMD Marking: 2K*
- Termination Type: Surface Mount Device
