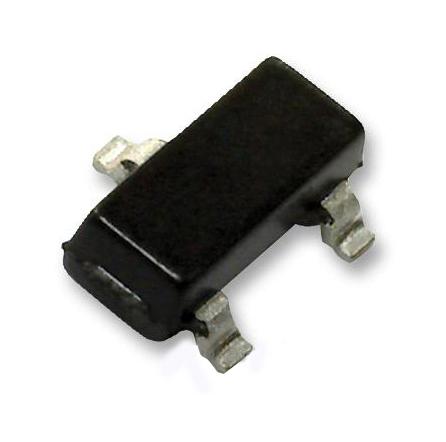

ONSEMI - BAT54ALT1G - Small Signal Schottky Diode, Dual Common Anode, 30 V, 200 mA, 800 mV, 600 mA, 150 °C
- Diode Configuration: Dual Common Anode
- Repetitive Reverse Voltage Vrrm Max: 30V
- Forward Current If(AV): 200mA
- Forward Voltage VF Max: 800mV
- Forward Surge Current Ifsm Max: 600mA
- Operating Temperature Max: 150°C
- Diode Case Style: SOT-23
- No. of Pins: 3Pins
- Product Range: BAT54 Series
- Automotive Qualification Standard: AEC-Q101
- SVHC: No SVHC (27-Jun-2018)
- Current If @ Vf: 10mA
- Current Ifsm: 600mA
- Device Marking: BAT54A
- Diode Type: Ultrafast Recovery
- Junction Temperature Tj Max: 125°C
- Operating Temperature Min: -55°C
- Pin Configuration: 1(K1), 2(K2), 3(A1+A2)
- Power Dissipation Ptot Max: 225mW
- Reverse Recovery Time trr Max: 5ns
- Reverse Recovery Time trr Typ: 5ns
- Reverse Voltage Vr Max: 30V
- SMD Marking: B6
- Termination Type: Surface Mount Device
