Description

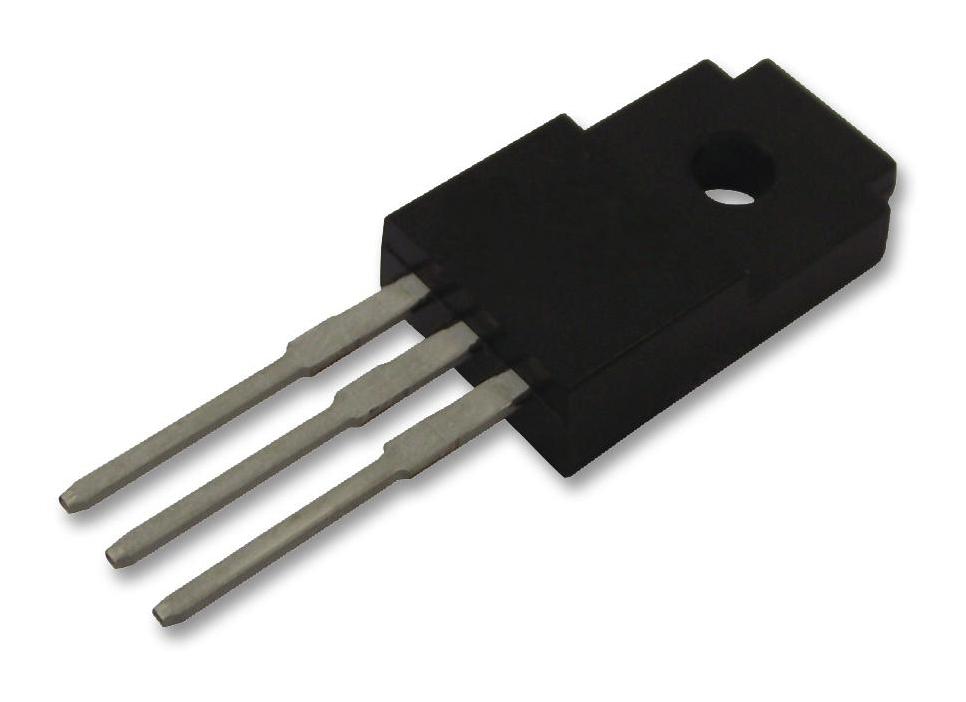

ROHM - BA09CC0T - Fixed LDO Voltage Regulator, 4V to 25V, 300mV Dropout, 9Vout, 1Aout, TO-220FP-3
- Output Type: Fixed
- Input Voltage Min: 4V
- Input Voltage Max: 25V
- Fixed Output Voltage Nom.: 9V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Output Current: 1A
- Dropout Voltage Vdo: 300mV
- LDO Regulator Case Style: TO-220FP
- No. of Pins: 3Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: 9V 1A LDO Voltage Regulators
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: To Be Advised
- MSL: -
- Output Voltage Nom.: 9V
- Primary Input Voltage: 25V
