Description

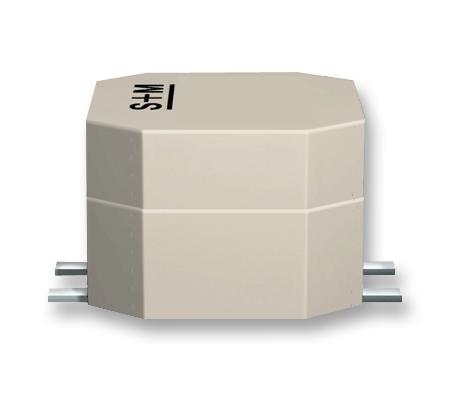

EPCOS - B82792C0685N365 - Choke, Common Mode, 6.8 mH, B82792C0 Series, 600 mA, 11.5mm x 10.5mm x 7.3mm
- Rated Current: 600mA
- Inductance: 6.8mH
- Product Range: B82792C0 Series
- Impedance: -
- Common Mode Filter Case: 11.5mm x 10.5mm x 7.3mm
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Climatic Category: 40/125/56
- Core Material: Ferrite
- DC Current Max: 600mA
- DC Current Rating: 500mA
- DC Resistance Max: 0.5ohm
- Flammability Rating: UL94V-0
- Inductance Min: 0.3µH
- Inductance Tolerance: -30% to +50%
- Inductor Case Style: SMD
- Inductor Type: Common / Asymmetrical
- No. of Pins: 8Pins
- Termination Type: Surface Mount Device
- Voltage Rating: 80V
- Voltage Rating V DC: 80V
- Voltage Rating VAC: 42V
