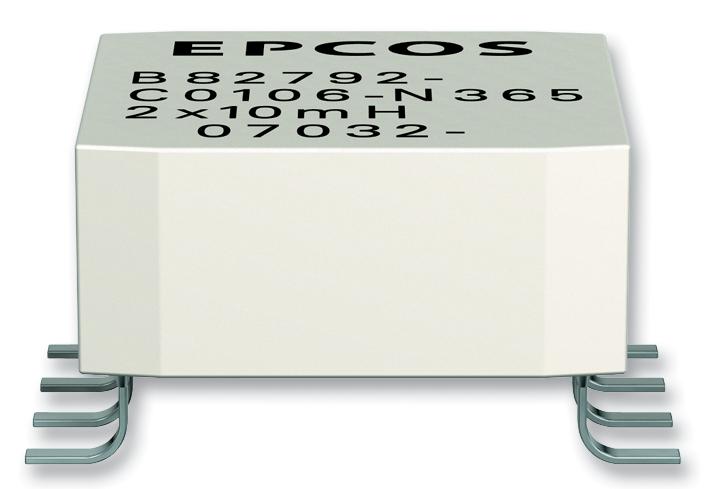

EPCOS - B82792C0336N365 - Choke, Common Mode, 33 mH, B82792C0 Series, 100 mA, 11.5mm x 10.5mm x 7.3mm
- Rated Current: 100mA
- Inductance: 33mH
- Product Range: B82792C0 Series
- Impedance: -
- Common Mode Filter Case: 11.5mm x 10.5mm x 7.3mm
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Core Material: Ferrite
- DC Current Max: 100mA
- DC Current Rating: 100mA
- DC Resistance Max: 2ohm
- Inductance Tolerance: -30% to +50%
- Inductor Case Style: SMD
- Inductor Type: Common Mode Choke
- No. of Pins: 8Pins
- Voltage Rating: 80V
