Description

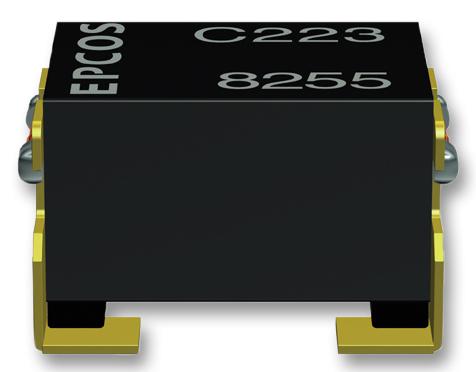

EPCOS - B82789C0223N002 - Choke, Common Mode, 22 µH, B82789C0 Series, 250 mA
- Rated Current: 250mA
- Inductance: 22µH
- Product Range: B82789C0 Series
- Impedance: -
- Common Mode Filter Case: -
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Core Material: Ferrite
- DC Current Max: 250mA
- DC Current Rating: 250mA
- DC Resistance Max: 0.58ohm
- External Depth: 3mm
- External Length / Height: 3mm
- External Width: 5mm
- Inductance Measurement Frequency: 100kHz
- Inductance Tolerance: -30% to +50%
- Inductor Case Style: 1812 [4532 Metric]
- Inductor Type: Asymmetrical
- Leakage Inductance: 100nH
- No. of Pins: 4Pins
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- RMS Current (Irms): 250mA
- Reel Quantity: 2500
- Termination Type: Surface Mount Device
- Test Voltage: 250V
- Voltage Rating: 42V
- Voltage Rating V DC: 80V
- Voltage Rating VAC: 42V
- Weight: 0.025kg
