Name: B82732W2701B030 Choke, Com Mode 2X39MH 0.7A EPCOS
Brand: EPCOS
SKU: B82732W2701B030
Price: 3.13 EUR
Availability: OutOfStock

Due to a change in EU legislation and the customs clearance procedures of deliveries, there is currently a delay in delivery.

Filters

B82732W2701B030 CHOKE, COM MODE 2X39MH 0.7A EPCOS

Roll over image to zoom in Click on image to zoom

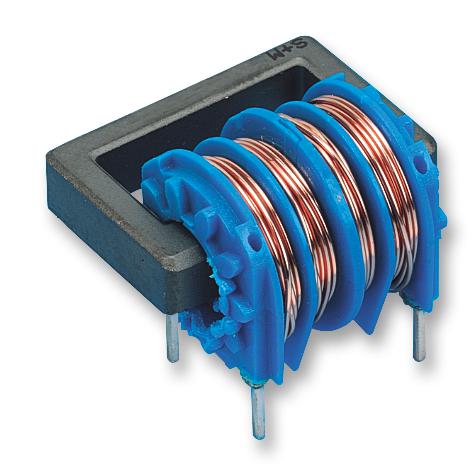

EPCOS - B82732W2701B030 - Choke, Common Mode, 39 mH, 700 mA, Through Hole, 4 Pins, B82732R/W Series

Inductance: 39mH
Rated Current: 700mA
Product Range: B82732R/W Series
SVHC: No SVHC (07-Jul-2017)
DC Current Max: 700mA
DC Current Rating: 700mA
DC Resistance Max: 1100mohm
External Depth: 23.1mm
External Length / Height: 17.3mm
External Width: 24mm
Flammability Rating: UL94V-0
Height: 17.3mm
Inductance Tolerance: -30% to +50%
Inductor Type: Common / Asymmetrical
Voltage Rating V DC: 250V
Voltage Rating VAC: 250V
