Description

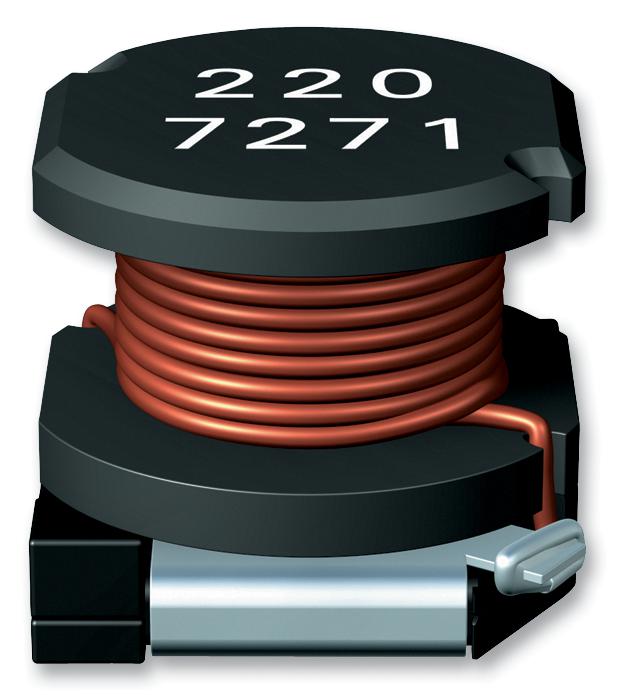

EPCOS - B82471A1224K000 - Wirewound Inductor, 220 µH, 1.57 ohm, 350 mA, B82471A1
- Inductance: 220µH
- RMS Current (Irms): 350mA
- Inductor Construction: Wirewound
- Saturation Current (Isat): 380mA
- Product Range: B82471A1 Series
- Power Inductor Case: 6.1mm x 5.6mm x 4.9mm
- DC Resistance Max: 1.57ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (27-Jun-2018)
- Inductor Type: Power
- No. of Pins: 2Pins
