Description

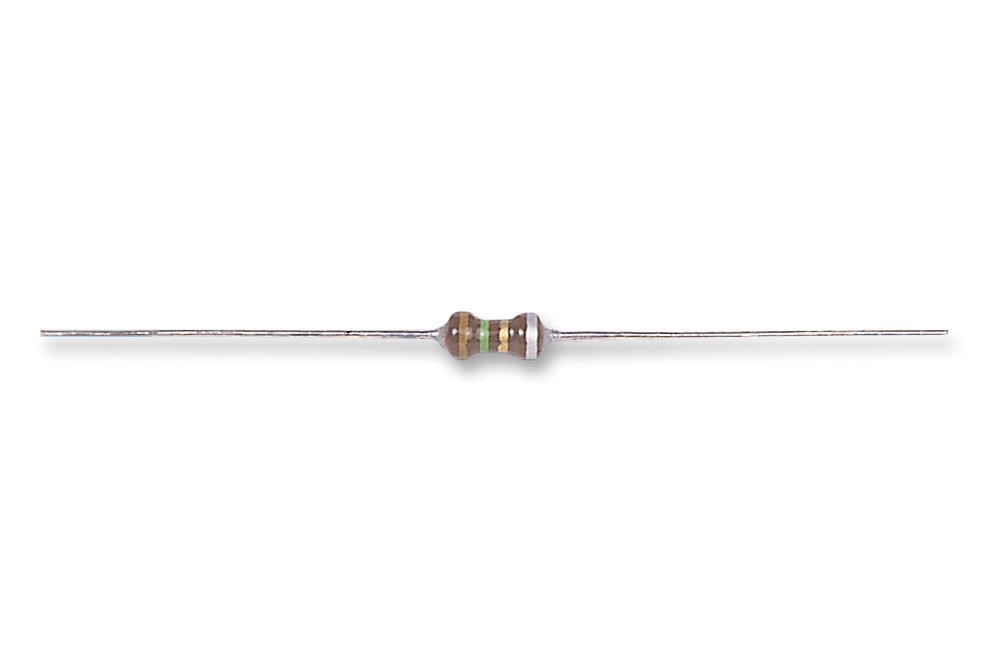

EPCOS - B78108S1182K000 - RF Choke, 1.8 µH, 1.03 A, 0.22 ohm, ± 10%, 155 MHz
- Product Range: -
- Inductance: 1.8µH
- DC Current Rating: 1.03A
- DC Resistance Max: 0.22ohm
- Inductance Tolerance: ± 10%
- Self Resonant Frequency Min: 155MHz
- SVHC: No SVHC (07-Jul-2017)
- Body Diameter: 4mm
- Core Material: Ferrite
- External Length / Height: 9.2mm
- Inductance Measurement Frequency: 1MHz
- Inductor Type: Inductor
- Lead Diameter: 0.63mm
- Lead Length: 25mm
- Q Factor: 55
- Q Test Frequency: 7.96MHz
- Resonant Frequency: 155MHz
