Description

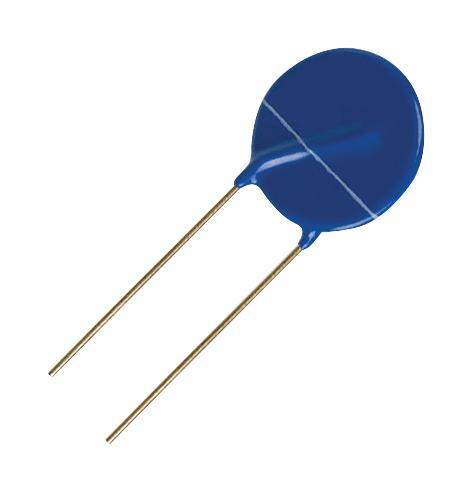

EPCOS - B72225S4421K101 - TVS Varistor, Monolithic, 420 V, 560 V, SuperioR S25, 1.12 kV, Disc 25mm
- Voltage Rating VAC: 420V
- Voltage Rating V DC: 560V
- Product Range: SuperioR S25 Series
- Clamping Voltage Vc Max: 1.12kV
- Varistor Case Style: Disc 25mm
- Varistor Type: Metal Oxide Varistor (MOV)
- Peak Surge Current @ 8/20µs: 20kA
- Operating Temperature Min: -40°C
- Operating Temperature Max: 105°C
- Peak Energy (10/1000uS): 700J
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
