Description

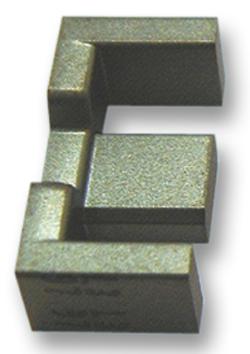

EPCOS - B66413G0000X197 - Transformer Cores, Half Core, EFD15, N97, 34 mm, 15 mm²
- Core Type: -
- Core Size: EFD15
- Core Material Grade: N97
- For Use With: -
- Effective Magnetic Path Length: 34mm
- Ae Effective Cross Section Area: 15mm²
- Inductance Factor Al: 820nH
- Product Range: Epcos EFD Series
- SVHC: No SVHC (07-Jul-2017)
- Accessory Type: Ferrite Core
- Al Tolerance Value +: 30%
- Al Tolerance Value -: 20%
- External Depth: 4.65mm
- External Length / Height: 7.5mm
- External Width: 15mm
- Height: 7.5mm
- Material Grade: N97
