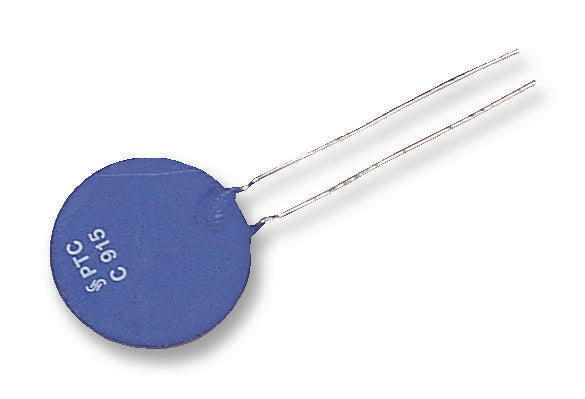

EPCOS - B59850C0120A070 - PTC Thermistor, 10 ohm, Through Hole, 265 V, -25% to +25%, B59850 Series
- Zero Power Resistance at 25°C: 10ohm
 - Thermistor Mounting: Through Hole
 - Product Range: B59850 Series
 - Operating Voltage Max: 265V
 - Applications: Over Current Protection, Short Circuit Protection
 - Operating Temperature Min: -40°C
 - Operating Temperature Max: 125°C
 - Automotive Qualification Standard: -
 - SVHC: No SVHC (27-Jun-2018)
 - Body Diameter: 13.5mm
 - Current Temperature: 120°C
 - Lead Length: 25mm
 - No. of Pins: 2Pins
 - Operating Temperature Range: -40°C to +125°C
 - Operating Voltage: 265V
 - Reference Volts: 220V
 - Resistance: 10ohm
 - Resistance Temperature: 25°C
 - Resistance Tolerance: ± 25%
 - Resistance Tolerance +: 25%
 - Resistance Tolerance -: 25%
 - Thermistor Case Style: Radial Leaded
 - Thermistor Tolerance: -25% to +25%
 - Thermistor Type: PTC
 - Tripping Current: 0.4A
 - Tripping Temperature: 120°C
 - Voltage Rating V DC: 265V
