Description

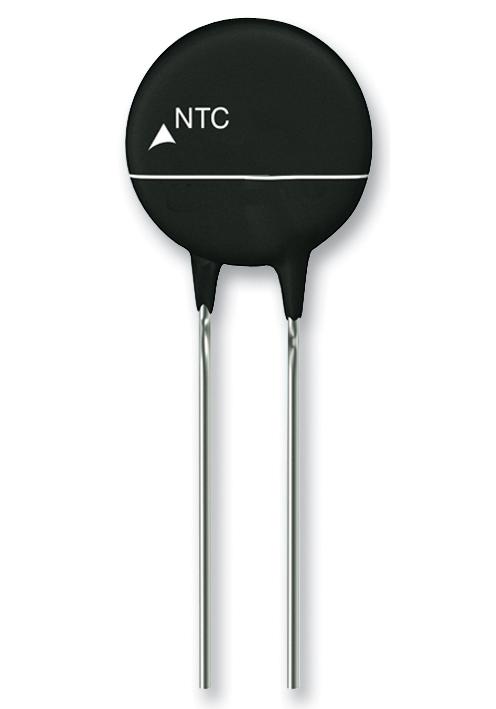

EPCOS - B57153S0479M000 - Thermistor, ICL NTC, 4.7 ohm, -20% to +20%, Radial Leaded, B57153S0 Series
- Product Range: B57153S0 Series
- Disc Size: 8.5mm
- Zero Power Resistance at 25°C: 4.7ohm
- Approvals: UL
- Maximum Energy Rating at 25°C: -
- Maximum Steady State Current at 25°C: 3A
- SVHC: No SVHC (27-Jun-2018)
- Beta Value (K): 2800K
- Beta Value Lower Limit Temperature: 25°C
- Body Diameter: 8.5mm
- Current Max: 3A
- Lead Length: 25mm
- Lead Spacing: 5mm
- No. of Pins: 2Pins
- Operating Temperature Max: 170°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +170°C
- Operating Voltage: 265V
- Power Dissipation Ptot Max: 1.4W
- Resistance: 4.7ohm
- Resistance Tolerance: ± 20%
- Temperature Upper Limit Beta Value: 100°C
- Thermistor Case Style: Radial Leaded
- Thermistor Tolerance: -20% to +20%
- Thermistor Type: NTC
