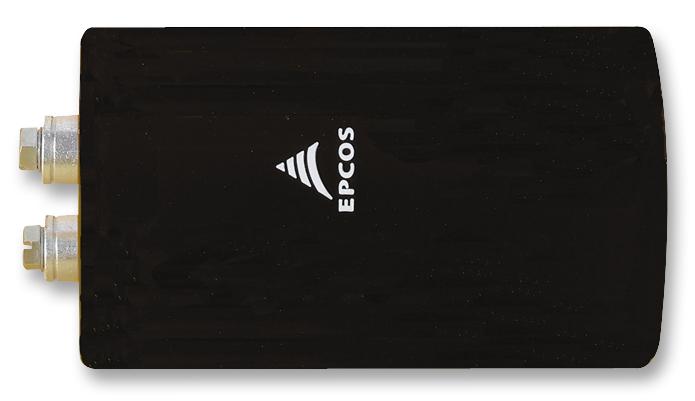

EPCOS - B43743A5478M000 - Electrolytic Capacitor, 4700 µF, 450 V, ± 20%, Screw, 6000 hours @ 105°C
- Capacitance: 4700µF
- Voltage Rating: 450V
- Product Range: B43743 Series
- Lifetime @ Temperature: 6000 hours @ 105°C
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Screw
- Diameter: 76.9mm
- Lead Spacing: 31.7mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 105°C
- Height: 143.2mm
- ESR: 0.0054ohm
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
