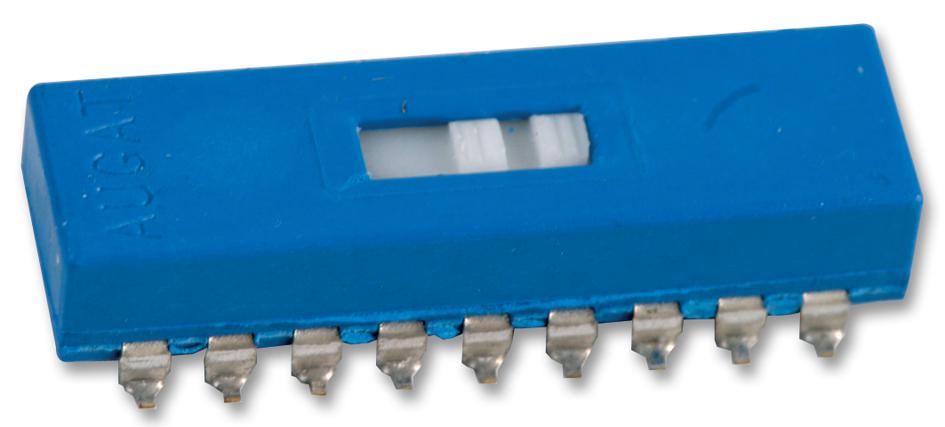

TE CONNECTIVITY - ASF22GL - Slide Switch, DPDT, Surface Mount, ASF, 300 mA, 20 V
- Contact Configuration: DPDT
- Switch Operation: -
- Switch Mounting: SMD
- Product Range: ASF Series
- Contact Current Max: 300mA
- Contact Voltage AC Max: 20V
- Contact Voltage DC Max: 20V
- Orientation: Vertical
- SVHC: No SVHC (15-Jun-2015)
- Actuation Type: Flat
- Actuator Type: Flush Slide
- Case Material: Polyester
- Contact Current @ Contact Voltage DC Max: 8A
- Contact Current AC Max: 20mA
- Contact Current DC Max: 8A
- Contact Resistance: 40mohm
- Dielectric Strength VDC: 1000VAC
- External Depth: 7.37mm
- External Length / Height: 4.44mm
- External Width: 10.2mm
- Height Max: 4.44mm
- Insulation Resistance: 1000Mohm
- Lever Length: 0mm
- No. of Electrical Operations: 10000
- Operating Force Max: 950gf
- Operating Temperature Max: 80°C
- Operating Temperature Min: -40°C
- Pin Diameter: 0.51mm
