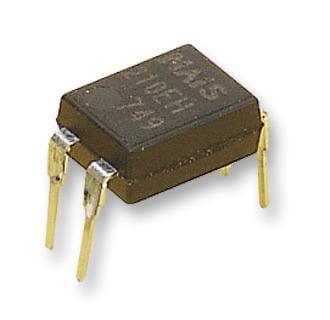

PANASONIC - AQY414EH - MOSFET Relay, 400 V, 120 mA, 35 ohm, SPST-NC
- Contact Configuration: SPST-NC
- Load Current: 120mA
- Relay Terminals: Through Hole
- Load Voltage Max: 400V
- On State Resistance Max: 35ohm
- Isolation Voltage: 5kV
- Forward Current If: 1.4mA
- Product Range: AQY Series
- SVHC: No SVHC (07-Jul-2017)
- Control Voltage Type: DC
- External Depth: 6.4mm
- External Length / Height: 3.2mm
- External Width: 4.78mm
- Lead Spacing: 2.54mm
- Load Current Max: 120mA
- Load Current RMS Max: 120mA
- Peak Load Voltage +: 400V
- RMS Load Voltage Max: 400VAC
- RMS Load Voltage Min: 0VAC
- Row Pitch: 8.3mm
- Surge Current: 0.3A
