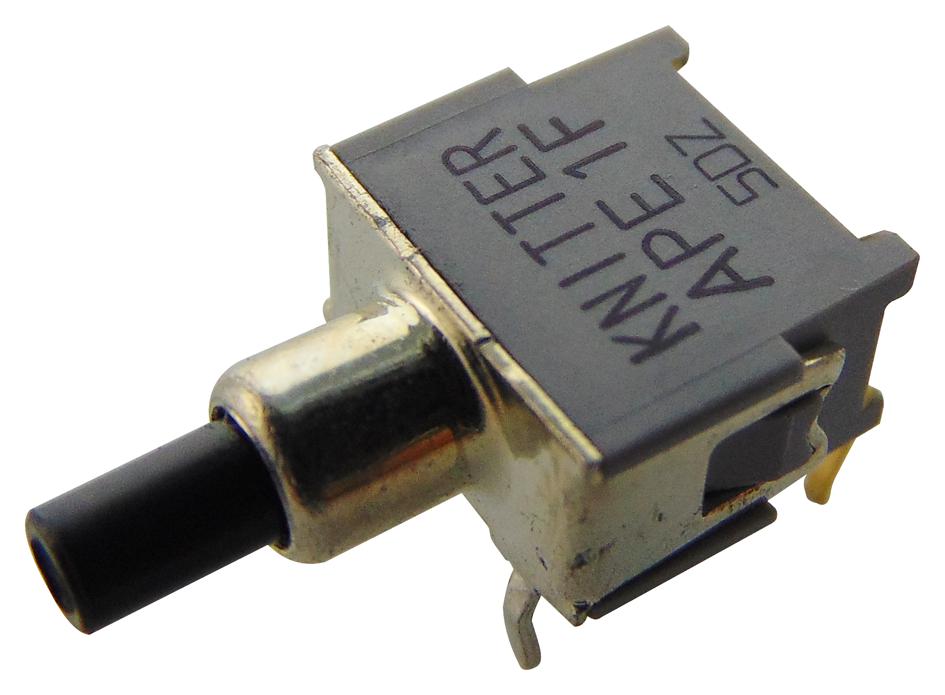

APE1F-Ra Pushbutton Switch, R/A, 1POLE Knitter-Switch

KNITTER-SWITCHSKU: APE1F-RA Order code: 1190435

Price:
Sale price€14,97

Tax included Shipping calculated at checkout

Stock:
In stock (224 units), ready to be shipped

Documents et téléchargements

Description

KNITTER-SWITCH - APE1F-RA - Pushbutton Switch, APE, SPDT, On-(On)

  • Switch Operation: On-(On)
  • Contact Configuration: SPDT
  • Contact Voltage AC Nom: 48V
  • Contact Voltage DC Nom: 48V
  • Contact Current Max: 50mA
  • Switch Terminals: Solder
  • Product Range: APE Series
  • SVHC: No SVHC (15-Jan-2018)
  • Actuation Type: Plunger
  • Approval Category: UL Recognised
  • Contact Resistance: 50mohm
  • Contact Voltage AC Min: 20mV
  • Contact Voltage DC Min: 20mV
  • External Depth: 9.5mm
  • External Length / Height: 19.3mm
  • External Width: 9.5mm
  • Flammability Rating: UL94V-0
  • Illumination Colour: Non-illuminated
  • Insulation Resistance: 1000Mohm
  • Insulation Resistance Voltage: 250VDC
  • Lead Spacing: 2.54mm
  • Material: PBT
  • No. of Mechanical Operations: 60000
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -20°C
  • Proof Voltage: 500V
  • Pushbutton Switch Type: Standard
  • Switching Current AC Max: 50mA
  • Switching Current AC Min: 1µA
  • Switching Current DC Max: 50mA
  • Switching Current DC Min: 1µA
  • Switching Power Max: 0.4VA
