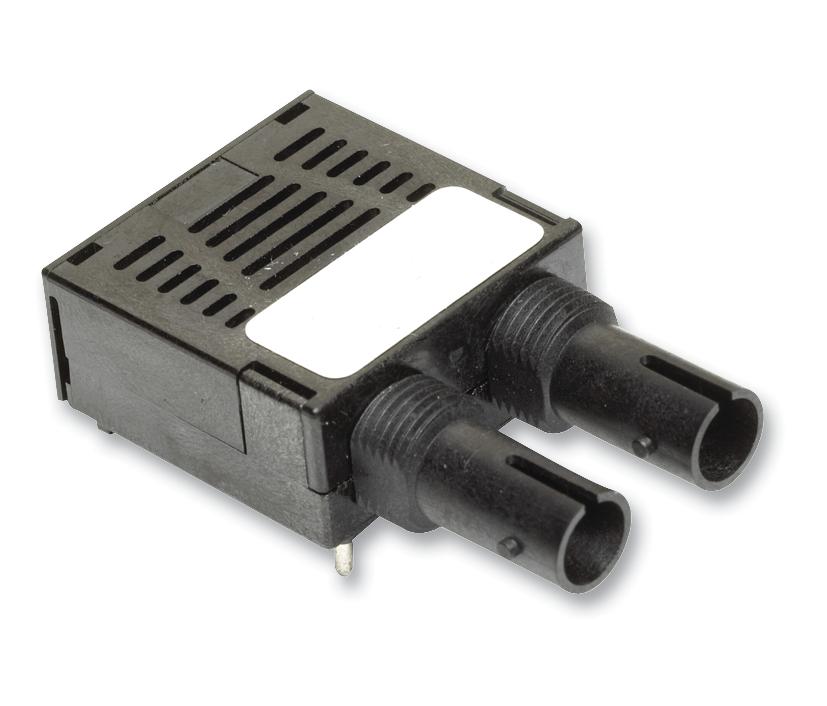

BROADCOM - AFBR-5803TZ - Fiber Optic Transceiver, Duplex ST Port, 1300 nm, 5 V, 100 Mbps
- Wavelength Typ: 1300nm
- Supply Voltage: 5V
- Data Rate Max: 100Mbps
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Connector Type: ST
- External Depth: 39.6mm
- External Length / Height: 12mm
- External Width: 25.4mm
- Fibre Optic Applications: Multimode Fibre Backbone Links, Multimode Fibre Media Converter
- Fibre Type: Multimode
- Lead Spacing: 2.54mm
- Operating Temperature Max: 70°C
- Operating Temperature Min: 0°C
- Peak Wavelength: 1300nm
- Pin Format: 1 x 9 SIL
- Supply Voltage Max: 5V
- Supply Voltage Min: 3.3V
