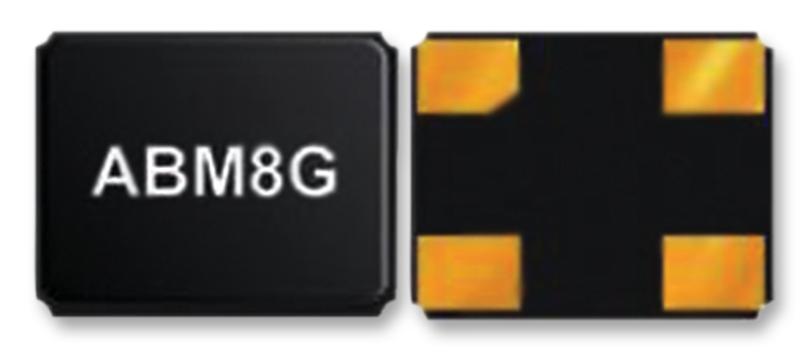

ABM8G-20.000MHZ-B4Y-T CRYSTAL, 20MHZ, 10PF, 3.2 X 2.5MM ABRACON
Roll over image to zoom in Click on image to zoom
ABM8G-20.000MHZ-B4Y-T CRYSTAL, 20MHZ, 10PF, 3.2 X 2.5MM ABRACON

ABM8G-20.000MHZ-B4Y-T Crystal, 20MHz, 10pF, 3.2 X 2.5mm ABRACON

ABRACONSKU: ABM8G-20.000MHZ-B4Y-T Order code: 2467845
Price:
€1,04

Tax included Shipping calculated at checkout

Stock:
Sold out

Documents et téléchargements

Description

ABRACON - ABM8G-20.000MHZ-B4Y-T - Crystal, 20 MHz, SMD, 3.2mm x 2.5mm, 30 ppm, 10 pF, 30 ppm, ABM8G

  • Frequency Nom: 20MHz
  • Crystal Case: SMD, 3.2mm x 2.5mm
  • Frequency Stability + / -: 30ppm
  • Load Capacitance: 10pF
  • Frequency Tolerance + / -: 30ppm
  • Product Range: ABM8G Series
  • Operating Temperature Min: -20°C
  • Operating Temperature Max: 70°C
  • SVHC: No SVHC (15-Jan-2019)
