Crystals/Oscillators/Resonators

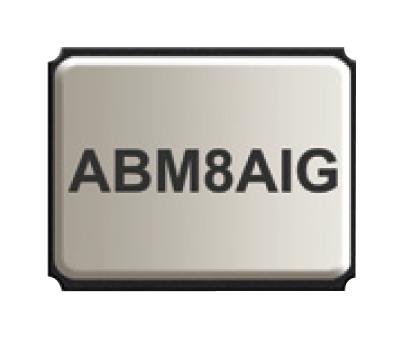

ABM8AIG-25.000MHZ-R40-4-T CRYSTAL, AECQ200, 25MHZ, 18PF, 3.2X2.5MM ABRACON
Roll over image to zoom in Click on image to zoom
ABM8AIG-25.000MHZ-R40-4-T CRYSTAL, AECQ200, 25MHZ, 18PF, 3.2X2.5MM ABRACON

ABM8AIG-25.000MHZ-R40-4-T Crystal, AECQ200, 25MHz, 18PF, 3.2x2.5mm ABRACON

ABRACONSKU: ABM8AIG-25.000MHZ-R40-4-T Order code: 2986205
Price:
€1,33

Tax included Shipping calculated at checkout

Stock:
Sold out

Description

ABRACON - ABM8AIG-25.000MHZ-R40-4-T - Crystal, 25 MHz, SMD, 3.2mm x 2.5mm, 100 ppm, 18 pF, 30 ppm, ABM8AIG

  • Frequency Nom: 25MHz
  • Crystal Case: SMD, 3.2mm x 2.5mm
  • Frequency Stability + / -: 100ppm
  • Load Capacitance: 18pF
  • Frequency Tolerance + / -: 30ppm
  • Product Range: ABM8AIG Series
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • SVHC: No SVHC (15-Jan-2019)
