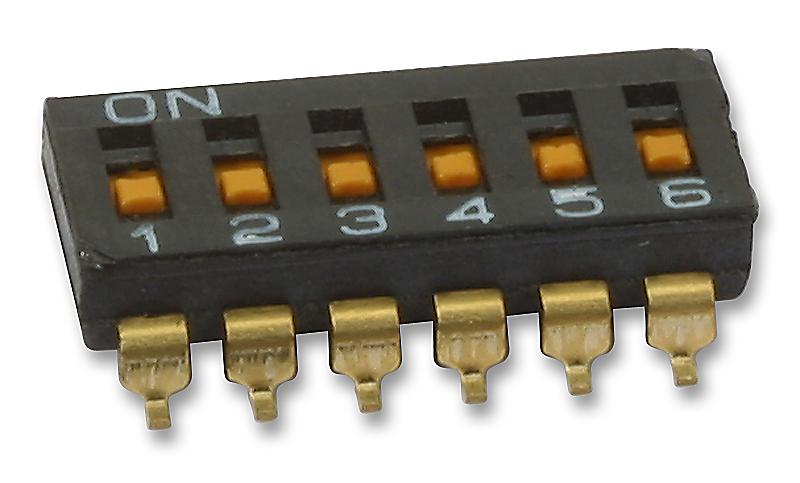

OMRON - A6S-6102-H - DIP / SIP Switch, 6 Circuits, Slide, Surface Mount, SPST, 24 VDC, 25 mA
- No. of Circuits: 6Circuits
 - Switch Actuator Style: Slide
 - Switch Mounting: SMD
 - Contact Configuration: SPST
 - Contact Voltage DC Max: 24VDC
 - Contact Current DC Max: 25mA
 - Product Range: A6S-H Series
 - Switch Type: DIP Sealed
 - Actuation Type: Flat
 - Contact Resistance: 200mohm
 - Contact Voltage DC Min: 3.5VDC
 - Dielectric Strength VDC: 500VAC
 - External Depth: 6.2mm
 - External Length / Height: 3mm
 - External Width: 16.18mm
 - Insulation Resistance: 100Mohm
 - Insulation Resistance Voltage: 250VDC
 - Lead Spacing: 2.54mm
 - No. of Electrical Operations: 1000
 - No. of Mechanical Operations: 1000
 - No. of Positions: 6Ways
 - Operating Force: 0.29N
 - Operating Force Min: 30gf
 - Operating Temperature Max: 70°C
 - Operating Temperature Min: -20°C
 - Pin Configuration: DIL
 - Pitch Spacing: 2.54mm
 - Row Pitch: 9.8mm
 - Switching Current DC Max: 25mA
 - Switching Current DC Min: 10µA
