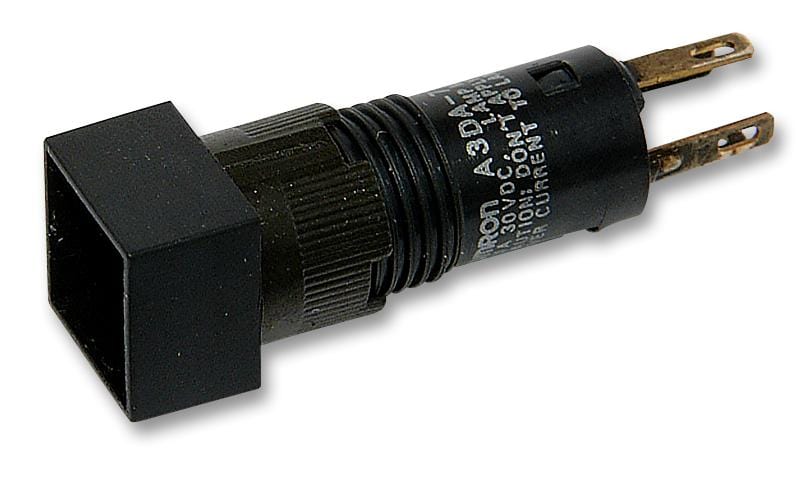

OMRON - A3DA-7111 - Pushbutton Switch, A3D, 8 mm, SPST-NO, Momentary, Square
- Product Range: A3D Series
- Contact Configuration: SPST-NO
- Switch Operation: Momentary
- Contact Current Max: 100mA
- Contact Voltage AC Nom: -
- Illumination Colour: -
- Contact Voltage DC Nom: 30V
- Switch Terminals: Solder Lug
- SVHC: No SVHC (27-Jun-2018)
- Actuation Type: Square
- Behind Panel Depth: 24.5mm
- Contact Current DC Max: 100mA
- Contact Voltage VDC: 30V
- Current Rating: 100mA
- External Depth: 24.5mm
- External Length / Height: 9mm
- External Width: 9mm
- IP / NEMA Rating: IP40
- IP Rating: IP40
- Operating Temperature Max: 55°C
- Operating Temperature Min: -10°C
- Panel Cutout Diameter: 8mm
- Pushbutton Actuator Style: Square
- Pushbutton Switch Type: Standard
- Switch Mounting: Panel
