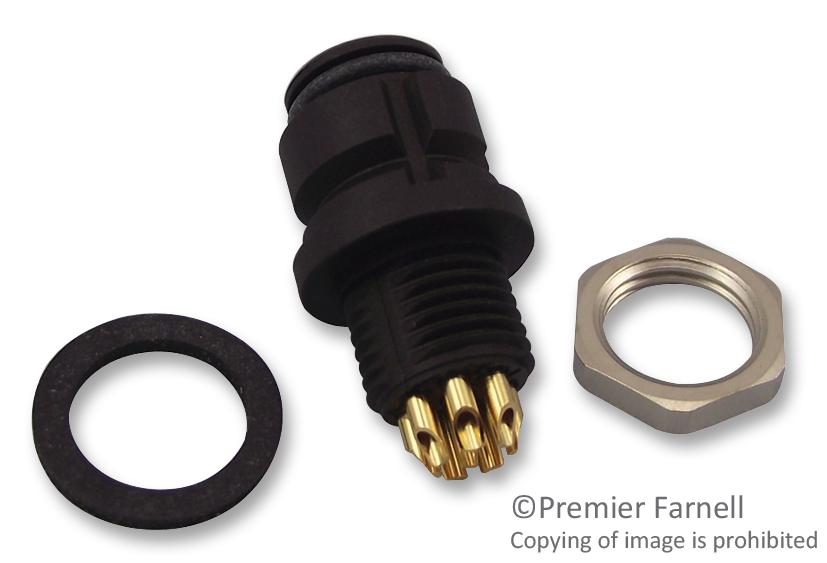

BINDER - 99-9228-00-08 - Circular Connector, 620 Series, Panel Mount Receptacle, 8 Contacts, Solder Socket
- Product Range: 620 Series
 - Circular Connector Shell Style: Panel Mount Receptacle
 - No. of Contacts: 8Contacts
 - Circular Contact Type: Solder Socket
 - Coupling Style: -
 - Connector Body Material: Nylon (Polyamide) Body
 - Connector Body Plating: -
 - Contact Material: Bronze
 - Contact Plating: Gold
 - SVHC: Lead (27-Jun-2018)
 - Cable Diameter Max: 5mm
 - Cable Diameter Min: 3mm
 - Connector Mounting: Panel Mount
 - Connector Type: Circular
 - Contact Gender: Socket
 - Contact Plating: Gold Plated Contacts
 - Contact Termination: Solder
 - Contact Termination Type: Solder
 - Current Rating: 1A
 - Flammability Rating: UL94V-0
 - Gender: Receptacle
 - IP / NEMA Rating: IP67
 - No. of Mating Cycles: 500
 - Operating Temperature Max: 85°C
 - Operating Temperature Min: -25°C
 - Wire Area Size Max: 0.25mm²
 - Wire Size AWG Max: 24AWG
 - Working Voltage: 63V
