Description

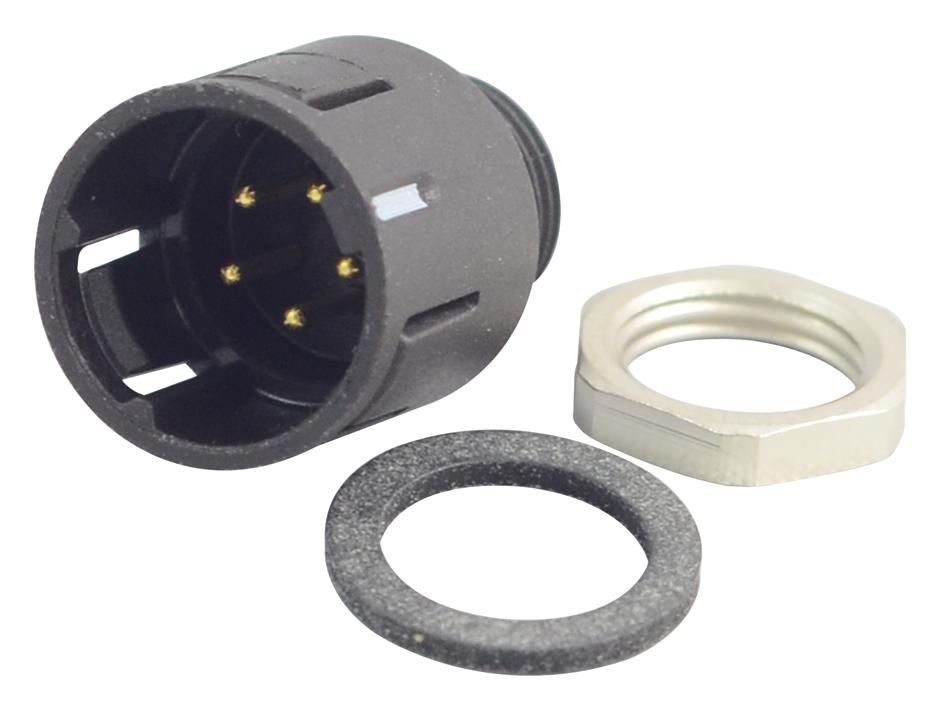

BINDER - 99-9215-00-05 - Circular Connector, 620 Series, Panel Mount Plug, 5 Contacts, Solder Pin
- Product Range: 620 Series
- Circular Connector Shell Style: Panel Mount Plug
- No. of Contacts: 5Contacts
- Circular Contact Type: Solder Pin
- Coupling Style: -
- Connector Body Material: -
- Connector Body Plating: -
- Contact Material: Brass
- Contact Plating: Gold
- SVHC: Lead (27-Jun-2018)
- Cable Diameter Max: 5mm
- Cable Diameter Min: 3mm
- Colour: Black
- Connector Mounting: Panel Mount
- Connector Shell Size: M8
- Connector Type: Circular Industrial
- Contact Gender: Pin
- Contact Plating: Gold Plated Contacts
- Contact Termination: Solder
- Contact Termination Type: Solder
- Current Rating: 2A
- Flammability Rating: UL94V-0
- Gender: Plug
- IP / NEMA Rating: IP67
- No. of Mating Cycles: 500
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Voltage Rating VAC: 800V
