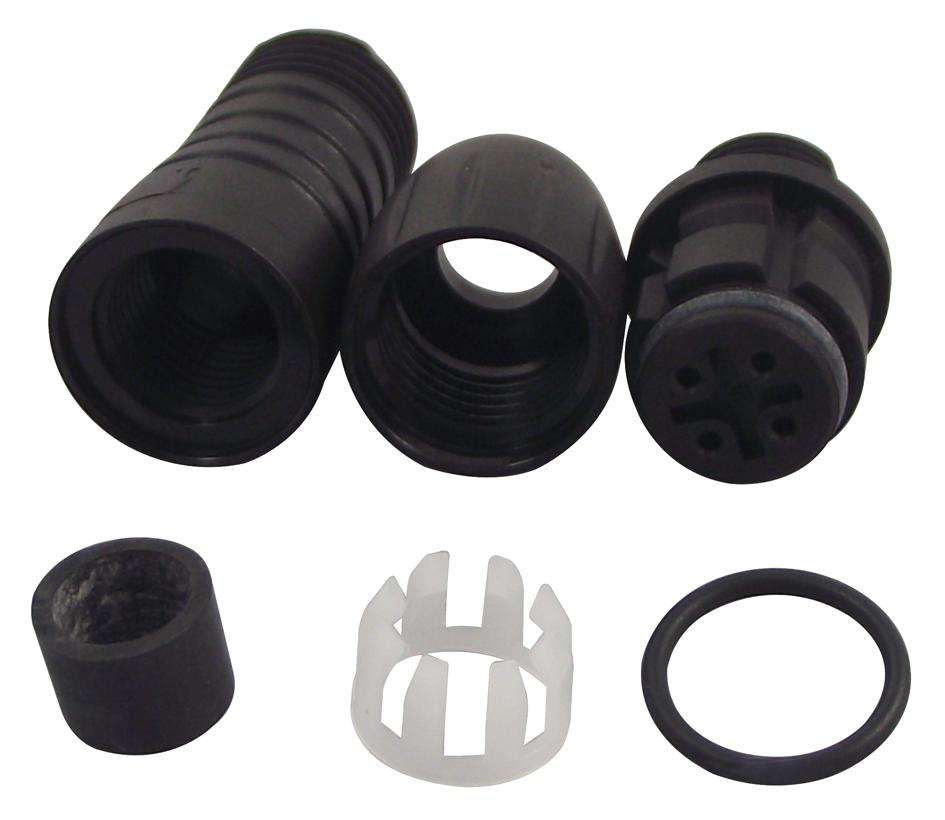

BINDER - 99-9210-00-04 - Circular Connector, 620 Series, Cable Mount Receptacle, 4 Contacts, Solder Socket
- Product Range: 620 Series
 - Circular Connector Shell Style: Cable Mount Receptacle
 - No. of Contacts: 4Contacts
 - Circular Contact Type: Solder Socket
 - Coupling Style: -
 - Connector Body Material: Nylon (Polyamide) Body
 - Connector Body Plating: -
 - Contact Material: Bronze
 - Contact Plating: Gold
 - SVHC: Lead (27-Jun-2018)
 - Cable Diameter Max: 5mm
 - Cable Diameter Min: 3mm
 - Colour: Black
 - Connector Mounting: Cable Mount
 - Connector Type: Circular Industrial
 - Contact Gender: Socket
 - Contact Plating: Gold Plated Contacts
 - Contact Termination: Solder
 - Contact Termination Type: Solder
 - Current Rating: 2A
 - Flammability Rating: UL94V-0
 - Gender: Receptacle
 - IP / NEMA Rating: IP67
 - Operating Temperature Max: 85°C
 - Operating Temperature Min: -25°C
 - Voltage Rating VAC: 125V
 - Wire Size AWG Max: 25AWG
