Description

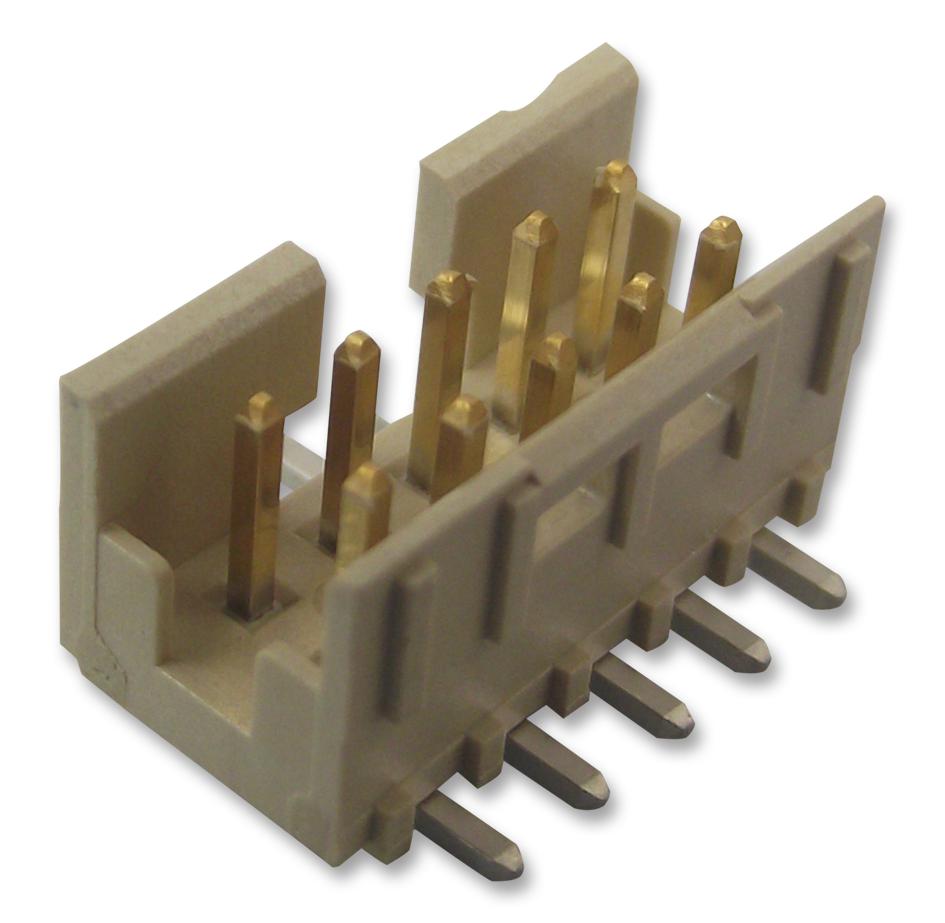

AMPHENOL COMMUNICATIONS SOLUTIONS - 98424-G52-10LF - Pin Header, Wire-to-Board, 2 mm, 2 Rows, 10 Contacts, Surface Mount, Minitek 98424
- Pitch Spacing: 2mm
- No. of Contacts: 10Contacts
- Gender: Header
- Product Range: Minitek 98424 Series
- Contact Termination Type: Surface Mount
- No. of Rows: 2Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2019)
- Colour: Cream
- Contact Termination: Surface Mount Vertical
- Current Rating: 2A
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Mohm
- Lead Spacing: 2mm
- Material: High Temp. Thermoplastic
- No. of Mating Cycles: 100
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Row Pitch: 2mm
- Termination Method: Solder
- Voltage Rating VAC: 200V
- Withstand Voltage: 650V
