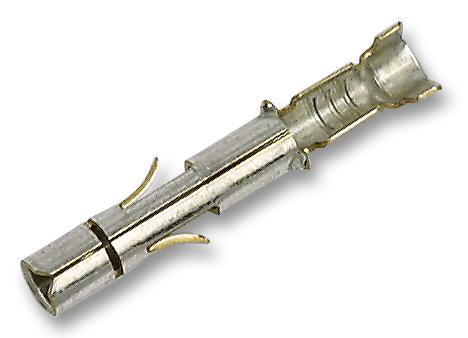

AMP - TE CONNECTIVITY - 926884-3 - Contact, Universal MATE-N-LOK, Socket, Crimp, 18 AWG, Tin Plated Contacts
- Product Range: Universal MATE-N-LOK Series
- Contact Gender: Socket
- Contact Termination Type: Crimp
- Wire Size AWG Max: 18AWG
- Contact Plating: Tin Plated Contacts
- For Use With: Universal MATE-N-LOK Connectors
- Wire Size AWG Min: 24AWG
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2019)
- Cable Diameter Max: 2.5mm
- Cable Diameter Min: 1mm
- Contact Termination: Crimp
- Current Rating: 19A
- Gender: Receptacle
- Insulation Diameter Max: 2.5mm
- Insulation Diameter Min: 1mm
- Material: Phosphor Bronze
- Pack Quantity: 1
- Voltage Rating VAC: 600V
- Wire Area Size Max: 0.8mm²
- Wire Area Size Min: 0.2mm²
- Wire Size: 24AWG
- Wire Size (AWG): 24AWG to 18AWG
- Wire Size Range (AWG): 24
