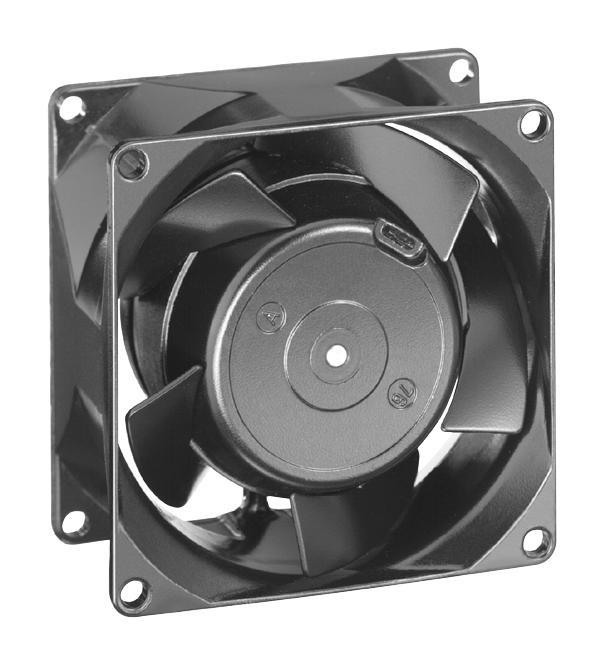

EBM-PAPST - 8506N - AC Axial Fan, 115V, Square, 80 mm, 38 mm, Ball Bearing, 35.9 CFM
- Supply Voltage: 115V
- Current Type: AC
- Fan Frame Size: 80mm
- External Depth: 38mm
- Noise Rating: 35dBA
- Flow Rate - Imperial: 35.9cu.ft/min
- Flow Rate - Metric: 1.01m³/min
- Bearing Type: Ball
- Power Connection Type: 2 Lead Wires
- Current Rating: -
- Product Range: 8000N Series
- Power Rating: 11W
- IP Rating: IP54, IP65
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CSA, UL, VDE
- External Diameter: 80mm
- External Height: 80mm
- External Width: 80mm
- Fixing Centres: 71.5mm
- Fixing Hole Diameter: 4mm
- Frame Dimensions: 80mm x 80mm x 38mm
- Frequency: 60Hz
- Operating Temperature Max: 95°C
- Operating Temperature Min: -40°C
- Operating life Time: 55000h
- Panel Cutout Diameter: 77mm
- Power Consumption: 11W
- Speed Range Max: 3300rpm
- Type: Standard,80mm
