Description

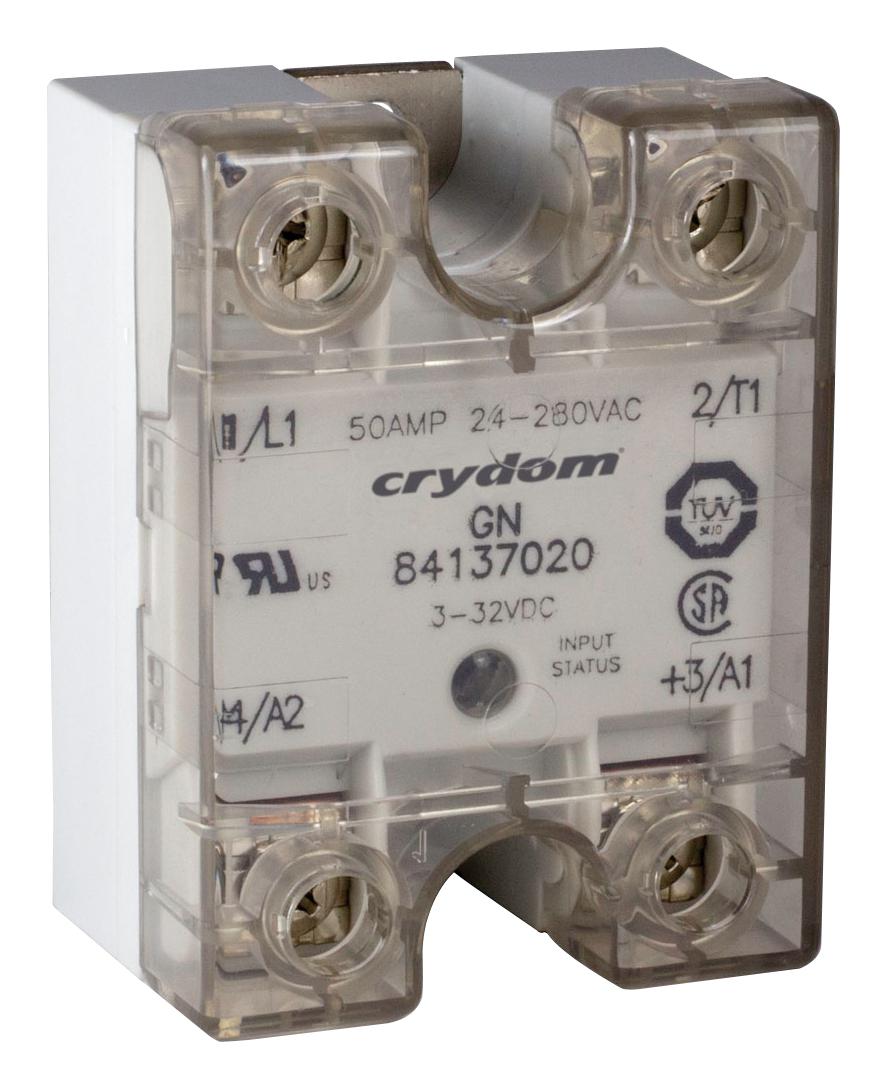

SENSATA/CRYDOM - 84137120 - Solid State Relay, 50 A, 660 VAC, Panel Mount, Screw, Zero Crossing
- Contact Configuration: -
 - Load Current: 50A
 - Operating Voltage Max: 660VAC
 - Relay Mounting: Panel
 - Relay Terminals: Screw
 - Switching Mode: Zero Crossing
 - Operating Voltage Min: 48VAC
 - Control Voltage Min: 4VDC
 - Control Voltage Max: 32VDC
 - Product Range: GN Series
 - SVHC: No SVHC (12-Jan-2017)
 - Control Current Max: 14mA
 - Control Current Min: 7mA
 - Control Voltage DC Max: 32VDC
 - Control Voltage DC Min: 4VDC
 - Control Voltage Range: 4V DC to 32V DC
 - Control Voltage Type: DC
 - Dropout Voltage Vdo: 1VDC
 - Input Voltage Max: 32VDC
 - Input Voltage Min: 4VDC
 - Isolation Voltage: 4kV
 - Load Current Min: 100mA
 - Load Current RMS Max: 50A
 - Operating Frequency Max: 63Hz
 - Operating Frequency Min: 47Hz
 - Operating Temperature Max: 80°C
 - Operating Temperature Min: -20°C
 - Operating Voltage Range: 48V AC to 660V AC
 - Output Type: Thyristor
 - RMS Load Current Min: 100mA
 - RMS Load Voltage Max: 660VAC
 - RMS Load Voltage Min: 48VAC
 - Single Cycle Surge Current: 780A
 - Surge Current: 235A
 - Turn Off Time: 8.33ms
 - Turn On Time: 8.33ms
