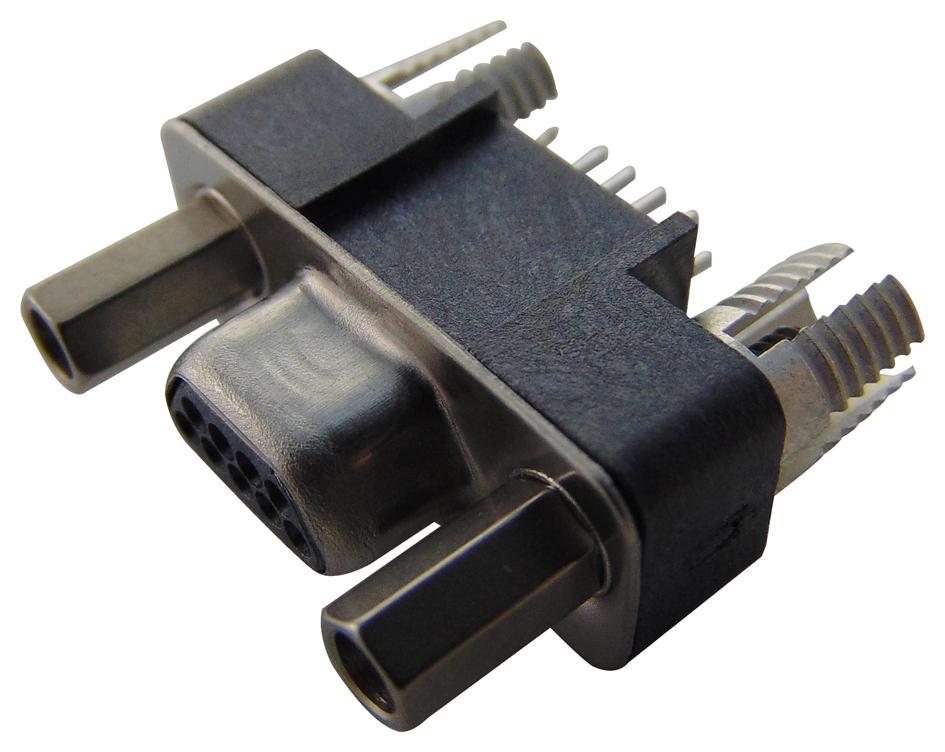

83611-9023 D-SUB CONN, PLUG, 9POS, PANEL MOLEX

MOLEXSKU: 83611-9023 Order code: 1263554

Price:
Sale price€22,29

Tax included Shipping calculated at checkout

Stock:
In stock (106 units), ready to be shipped

Description

MOLEX - 83611-9023 - D Sub Connector, Micro D, Plug, 83611, 9 Contacts, Solder

  • No. of Contacts: 9Contacts
  • Gender: Plug
  • Product Range: 83611 Series
  • Contact Termination Type: Solder
  • Connector Mounting: Through Hole Mount
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Copper Alloy
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: CSA, UL
  • Approval Category: E34763
  • Case Material: Nickel Plated
  • Connector Body Material: Steel Body
  • Connector Type: D Sub
  • Contact Resistance: 8mohm
  • Contact Termination: Through Hole Vertical
  • Current Rating: 1A
  • D Sub Connector Type: Micro D
  • DC Current Max: 3A
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 5000Mohm
  • Material: Stainless Steel
  • No. of Mating Cycles: 500
  • Operating Temperature Max: +125°C
  • Operating Temperature Min: -55°C
  • Pitch Spacing: 1.27mm
  • Termination Method: Solder
  • Withstand Voltage: 650V
  • Working Voltage: 350V
