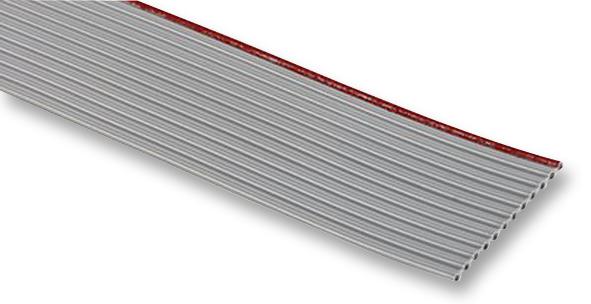

3M - 8125/08 - Ribbon Cable, Round Conductor Flat, Zippable, Unscreened, 8 Core, 24 AWG, 100 ft, 30.5 m
- Cable Shielding: Unscreened
- No. of Cores: 8Core
- Wire Gauge: 24AWG
- Conductor Area CSA: -
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- Jacket Colour: Grey
- Cable Width: 19.51mm
- No. of Max Strands x Strand Size: 7 x 32AWG
- Pitch Spacing: 2.54mm
- Voltage Rating: 300V
- Conductor Material: Tinned Copper
- Jacket Material: PVC
- Ribbon Cable Type: Flat Ribbon Cable
- Product Range: 8125 Series
- SVHC: No SVHC (15-Jan-2018)
- Capacitance: 9.6pF/ft
- Impedance: 136ohm
- Inductance: 0.18µH
- Operating Temperature Max: 105°C
- Operating Temperature Min: -20°C
- Propagation Delay: 1.3ns/ft
