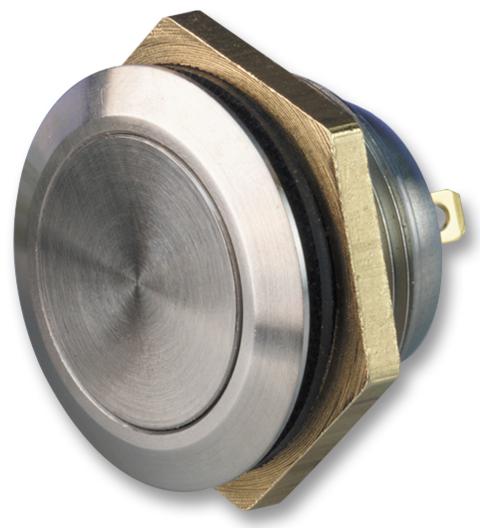

76-5910 Switch, SPST, 0.4A, 32VAC, ITW Switches

ITW SWITCHESSKU: 76-5910 Order code: 4389426

Price:
Sale price€59,06

Tax included Shipping calculated at checkout

Stock:
In stock (652 units), ready to be shipped

Documents et téléchargements

Description

ITW SWITCHES - 76-5910 - Vandal Resistant Switch, 76-59, 19.3 mm, SPST-NO-DB, Momentary, Round Flush, Natural

  • Contact Configuration: SPST-NO
  • Actuator / Cap Colour: Natural
  • Product Range: 76-59 Series
  • Switch Operation: Momentary
  • Illumination Colour: Non-illuminated
  • Switch Terminals: Solder Lug
  • Contact Current Max: 400mA
  • Contact Voltage AC Max: 125V
  • Operating Force: 3N
  • Contact Voltage DC Max: 50V
  • SVHC: No SVHC (17-Dec-2015)
  • Contact Current AC Max: 400mA
  • Contact Current DC Max: 100mA
  • Contact Voltage AC Min: 32V
  • Contact Voltage VAC: 32V
  • Contact Voltage VDC: 50V
  • IP / NEMA Rating: IP67
  • IP Rating: IP67
  • Panel Cutout Diameter: 19.3mm
  • Pushbutton Actuator Style: Round
  • Pushbutton Switch Type: Anti-Vandal
  • Switch Mounting: Panel
