Description
ONSEMI - 74VHC138MTCX - Decoder / Demultiplexer, HC Family, 8 Output, 8 mA, 2 V to 5.5 V, TSSOP-16
- Logic Family / Base Number: 74VHC138
- Logic Type: Decoder
- No. of Outputs: 8Outputs

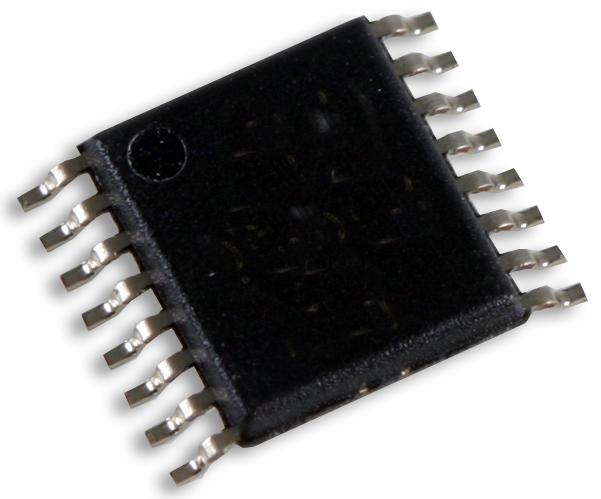

- Logic Case Style: TSSOP
- No. of Pins: 16Pins
- Supply Voltage Min: 2V
- Supply Voltage Max: 5.5V
- Logic IC Family: 74VHC
- Logic IC Base Number: 74138
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Applications: Address Decoder for Memory Systems, Battery Back Up
- IC Applications: Address Decoder for Memory Systems, Battery Back Up
- Logic Function Number: 74138
- Logic IC Base Number: 74138
- Logic IC Function: 3-to-8 Decoder/Demultiplexer
- Operating Temperature Range: -40°C to +85°C
- Output Current Max: 8mA
- Supply Voltage Range: 2V to 5.5V
- Termination Type: Surface Mount Device
