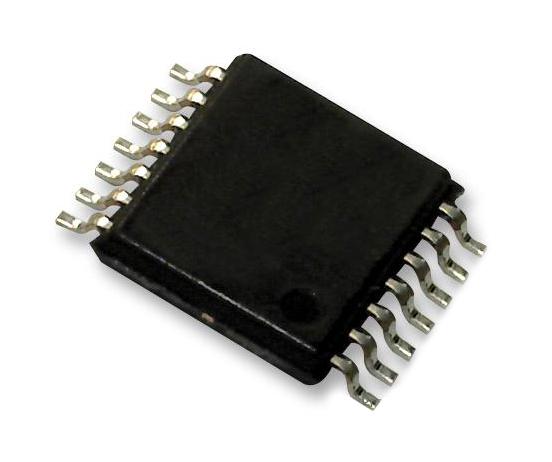

ONSEMI - 74LVX14MTCX - Logic IC, Inverter, Hex, 1 Inputs, 14 Pins, TSSOP, 74LVX14
- Logic Family / Base Number: 74LVX14
- Logic Type: Inverter Schmitt Trigger
- Output Current: 4mA
- No. of Inputs: 6
- Supply Voltage Min: 2V
- Supply Voltage Max: 3.6V
- Logic Case Style: TSSOP
- No. of Pins: 14Pins
- Logic IC Family: 74LVX
- Logic IC Base Number: 7414
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Logic Function Number: 7414
- Logic IC Base Number: 7414
- Logic IC Function: Low Voltage Hex Inverter with Schmitt Trigger Input
- Operating Temperature Range: -40°C to +85°C
- Supply Voltage Range: 2V to 3.6V
- Termination Type: Surface Mount Device
