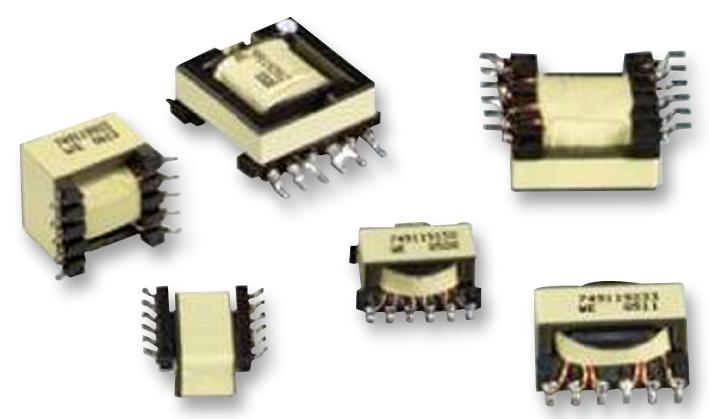

WURTH ELEKTRONIK - 7491199212 - Ethernet & LAN Transformer, PoE, 1 Port, 1:0.29:0.29:0.21, 127 µH, 1.5 kV, Surface Mount
- Transformer Type: PoE LAN
- No. of Ports: 1 Port
- Transformer Mounting: Surface Mount
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Current Rating: 550mA
- Inductance: 127µH
- Input Voltage DC Max: 57VDC
- Input Voltage DC Min: 36VDC
- Leakage Inductance: 2.3µH
- Output Voltage: 12V
- Power Rating: 13W
- Secondary Voltages: 2 x 12V
- Transformer Type: PoE
- Turns Ratio: 1
