7447798221 Choke, 22UH, 1064 Size Wurth Elektronik

WURTH ELEKTRONIKSKU: 7447798221 Order code: 1800289

Price:
Sale price€5,97

Tax included Shipping calculated at checkout

Stock:
In stock (497 units), ready to be shipped

Documents et téléchargements

Description

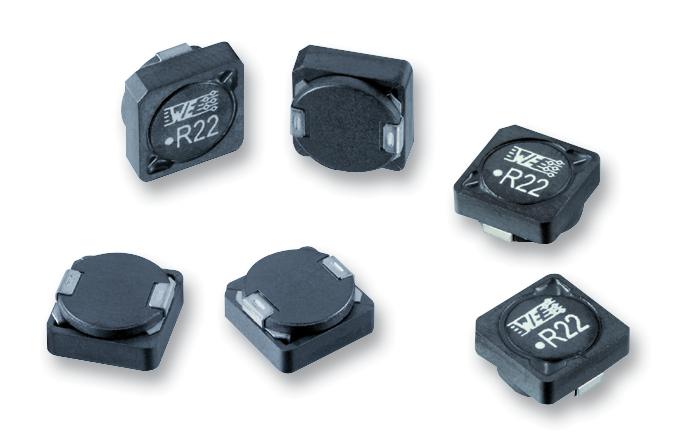

WURTH ELEKTRONIK - 7447798221 - Power Inductor (SMD), 22 µH, 4.7 A, Shielded, 3.5 A, WE-PDF

  • Inductance: 22µH
  • RMS Current (Irms): 4.7A
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 3.5A
  • Product Range: WE-PDF Series
  • Power Inductor Case: 10.2mm x 10.2mm x 6.4mm
  • DC Resistance Max: 0.0373ohm
  • Inductance Tolerance: ± 20%
  • SVHC: No SVHC (15-Jan-2019)
  • External Depth: 10.2mm
  • External Length / Height: 6.4mm
  • External Width: 10.2mm
  • Inductance Measurement Frequency: 100kHz
  • No. of Pins: 2Pins
  • Operating Temperature Max: 150°C
  • Operating Temperature Min: -40°C
  • Resonant Frequency: 18MHz
  • Self Resonant Frequency Min: 17MHz
