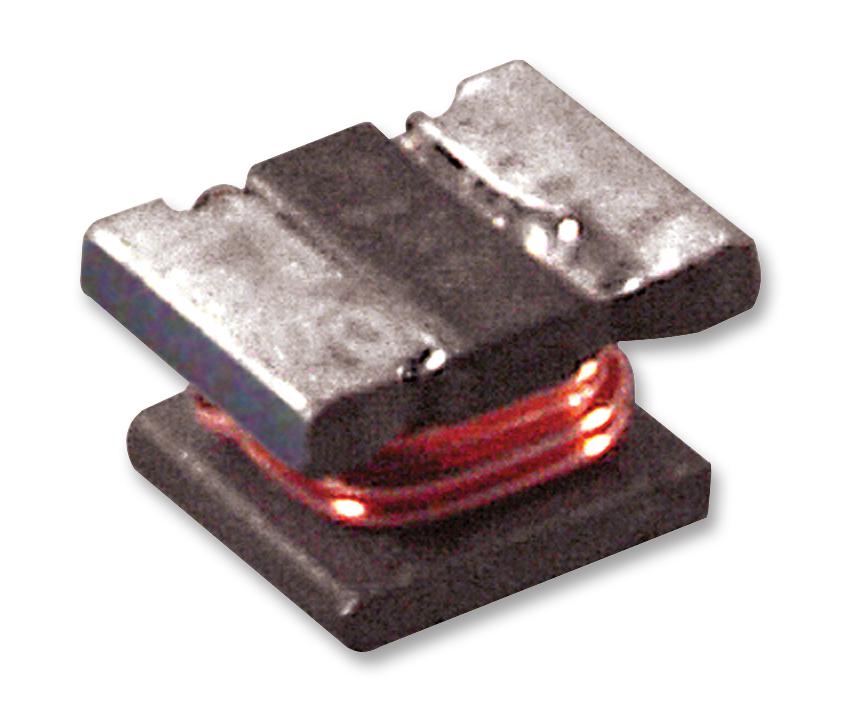

744045002 Inductor, 2.2µH, 1812 Case Wurth Elektronik

WURTH ELEKTRONIKSKU: 744045002 Order code: 1800400

Price:
Sale price€1,83

Tax included Shipping calculated at checkout

Stock:
In stock (453 units), ready to be shipped

Documents et téléchargements

Description

WURTH ELEKTRONIK - 744045002 - Power Inductor (SMD), 2.2 µH, 1.6 A, Unshielded, 2.75 A, WE-LQ, 4.5mm x 3.2mm x 2.6mm

  • Inductance: 2.2µH
  • RMS Current (Irms): 1.6A
  • Inductor Construction: Unshielded
  • Saturation Current (Isat): 2.75A
  • Product Range: WE-LQ Series
  • Power Inductor Case: 4.5mm x 3.2mm x 2.6mm
  • DC Resistance Max: 0.11ohm
  • Inductance Tolerance: ± 20%
  • SVHC: No SVHC (15-Jan-2019)
  • External Depth: 3.2mm
  • External Length / Height: 2.6mm
  • External Width: 4.5mm
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -40°C
  • Q Factor: 40
  • Q Test Frequency: 1MHz
  • Resonant Frequency: 80MHz
  • Self Resonant Frequency Min: 80MHz
  • Test Frequency: 1MHz
