Description

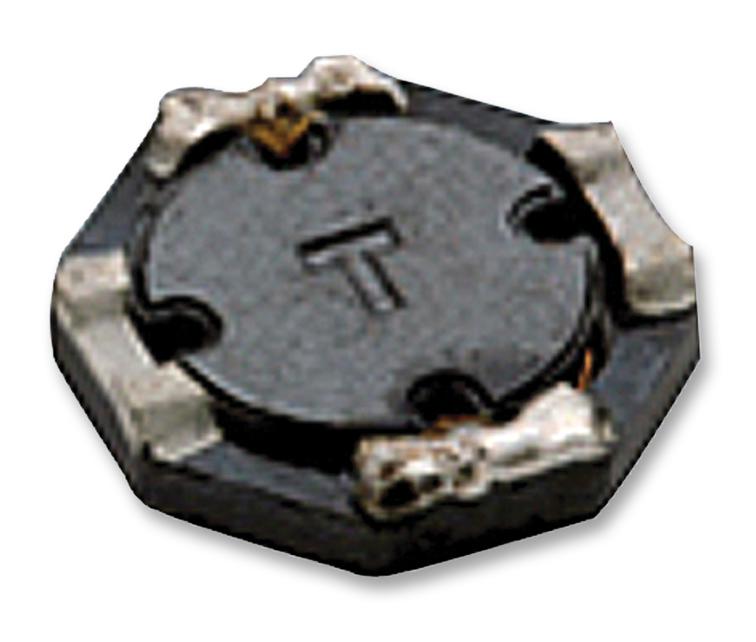

WURTH ELEKTRONIK - 744028003 - Power Inductor (SMD), 3.3 µH, 1 A, Shielded, 850 mA, WE-TPC
- Inductance: 3.3µH
- RMS Current (Irms): 1A
- Inductor Construction: Shielded
- Saturation Current (Isat): 850mA
- Product Range: WE-TPC Series
- Power Inductor Case: 2.8mm x 2.8mm x 1.1mm
- DC Resistance Max: 0.22ohm
- Inductance Tolerance: ± 30%
- SVHC: No SVHC (15-Jan-2019)
- Inductor Type: Power
- No. of Pins: 2Pins
- Resonant Frequency: 80MHz
- Self Resonant Frequency Min: 80MHz
