74270031 Ferrite Core, Cylindrical, 625OHM Wurth Elektronik

WURTH ELEKTRONIKSKU: 74270031 Order code: 1635647

Price:
Sale price€1,52

Tax included Shipping calculated at checkout

Stock:
In stock (2799 units), ready to be shipped

Documents et téléchargements

Description

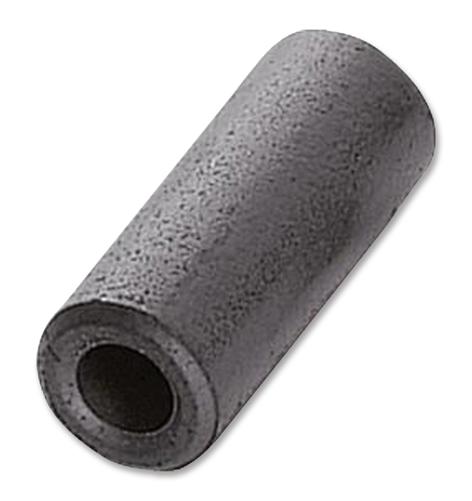

WURTH ELEKTRONIK - 74270031 - Ferrite Core, Cylindrical, 625 ohm, 20.5 mm Length, 5 mm ID, 11.5 mm OD, WE-AFB Series

  • Outer Diameter: 11.5mm
  • Length: 20.5mm
  • Inner Diameter: 5mm
  • Frequency Min: -
  • Frequency Max: -
  • Impedance @ 100MHz: 625ohm
  • Product Range: WE-AFB Series
  • SVHC: No SVHC (15-Jan-2019)
  • Cable Diameter Max: 4.6mm
  • External Diameter: 11.5mm
  • External Length / Height: 20.5mm
  • Ferrite Case Style: Tubular
  • Impedance @ 25MHz Typ: 6.8ohm
  • Internal Diameter: 5mm
  • Material Grade: 4 W 1500
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -25°C
