Description

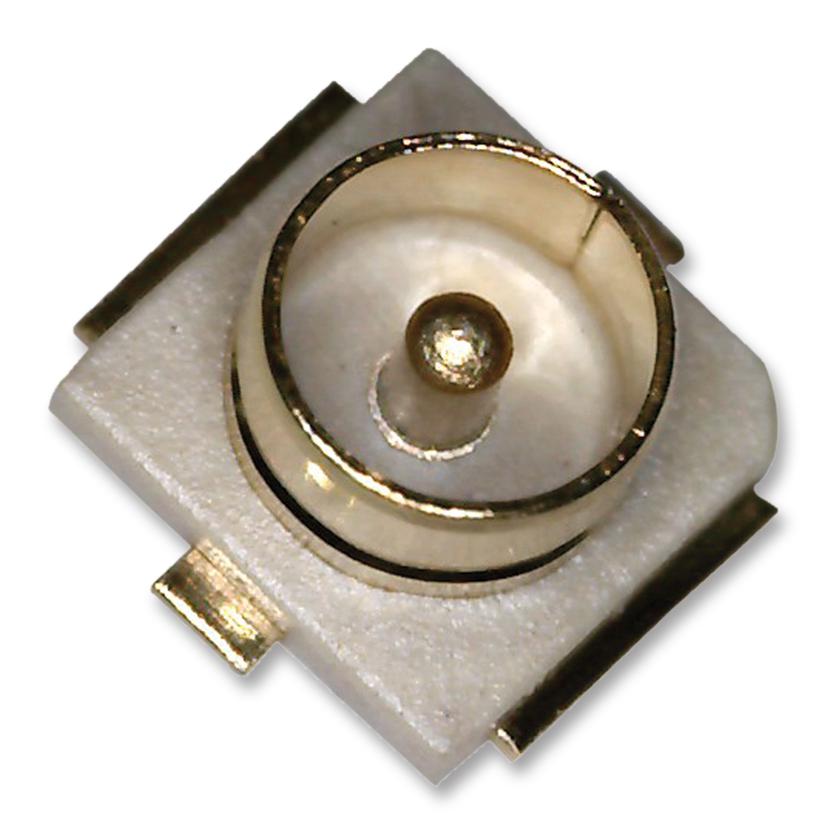

MOLEX - 73412-0110 - RF / Coaxial Connector, MCX Coaxial, Straight Jack, Surface Mount Vertical, 50 ohm, Brass
- Connector Type: MCX Coaxial
- Connector Body Style: Straight Jack
- Coaxial Termination: Surface Mount Vertical
- Impedance: 50ohm
- Coaxial Cable Types: -
- Contact Material: Brass
- Contact Plating: Gold Plated Contacts
- Frequency Max: 6GHz
- Connector Mounting: PCB Mount
- Product Range: 73412 Series
- SVHC: No SVHC (15-Jan-2019)
- Body Plating: Gold
- Centre Contact Resistance: 20mohm
- Connector Mounting Orientation: PC Board
- External Length / Height: 1.25mm
- Material: Phosphor Bronze
- No. of Mating Cycles: 30
- Operating Frequency Max: 6GHz
- Operating Temperature Max: +90°C
- Operating Temperature Min: -40°C
- Outer Contact Resistance: 10mohm
- Termination Method: Solder
- VSWR: 1.4
- Voltage Rating VAC: 60V
- Withstand Voltage: 200V
