Description

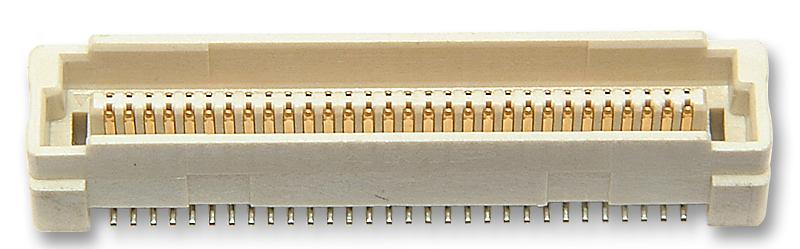

MOLEX - 714362164 - Mezzanine Connector, Header, 1 mm, 2 Rows, 64 Contacts, Surface Mount, Phosphor Bronze
- Product Range: PMC Mezzanine 71436 Series
- No. of Contacts: 64Contacts
- Gender: Header
- Pitch Spacing: 1mm
- Contact Termination Type: Surface Mount
- No. of Rows: 2Rows
- Row Pitch: -
- Contact Plating: Gold Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: UL
- Contact Resistance: 30mohm
- Contact Termination: Solder
- Current Rating: 1A
- De-mating Force: 25gf
- External Depth: 6.1mm
- External Length / Height: 10mm
- External Width: 35.9mm
- Height: 10mm
- Insulation Resistance: 1000Mohm
- Lead Spacing: 1mm
- Mating Force: 50gf
- Operating Temperature Max: 85°C
- Operating Temperature Min: -55°C
- Termination Method: Solder
- Voltage Rating VAC: 100V
- Withstand Voltage: 250V
- Working Voltage: 100V
