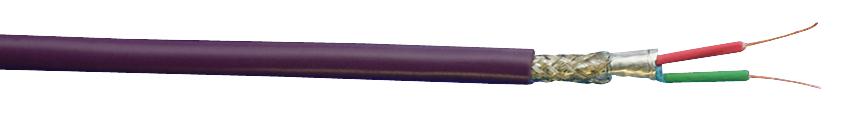

ALPHA WIRE - 6462 VI005 - Multipair Cable, ProfiBus, Screened, 1 Pair, 22 AWG, 0.317 mm², 100 ft, 30.5 m
- Cable Shielding: Screened
- No. of Pairs: 1 Pair
- Wire Gauge: 22AWG
- Conductor Area CSA: 0.317mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- Jacket Colour: Purple
- No. of Max Strands x Strand Size: Solid
- Voltage Rating: 300V
- Jacket Material: PVC
- Conductor Material: Copper
- External Diameter: 8mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Cable Type: Braided Shield
- No. of Cores: 2Core
