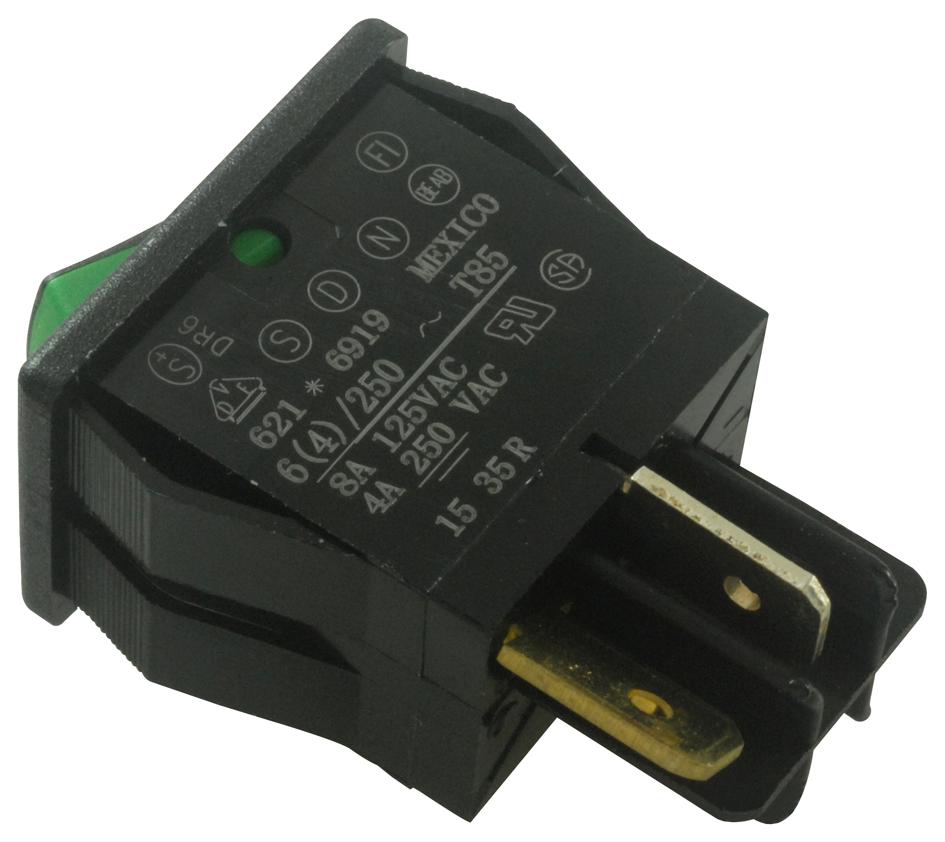

CARLING - 6211691909G - Rocker Switch, Off-On, SPST, Non Illuminated, Panel Mount, Black, Green, 621
- Illumination: Non Illuminated
- Contact Configuration: SPST
- Switch Operation: Off-On
- Actuator / Cap Colour: Black, Green
- Switch Mounting: Panel
- Contact Current Max: 8A
- Contact Voltage AC Nom: 125V
- Contact Voltage DC Nom: 125V
- Product Range: 621 Series
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: CSA, DEMKO, NEMKO, SEMKO, SETI, SEV, TUV, VDE
- Approval Category: UL Recognised
- Colour: Green
- Contact Current AC: 4A
- Contact Current AC Max: 8A
- Contact Voltage AC Max: 250VAC
- Dielectric Strength VDC: 1000V
- External Depth: 27mm
- Insulation Resistance: 100Mohm
- Operating Temperature Max: 85°C
- Operating Temperature Min: 0°C
- Panel Cutout Size: 19.2 x 12.9 mm
- Panel Cutout Width: 12.9mm
- Panel Cutout length: 19.2mm
- Tab Blade Thickness: 4.7mm
