5856 RD005 Wire, UL1213, 20AWG, Red, 30.5m Alpha Wire

ALPHA WIRESKU: 5856 RD005 Order code: 1199131

Price:
Sale price€127,91

Tax included Shipping calculated at checkout

Stock:
In stock (92 units), ready to be shipped

Documents et téléchargements

Description

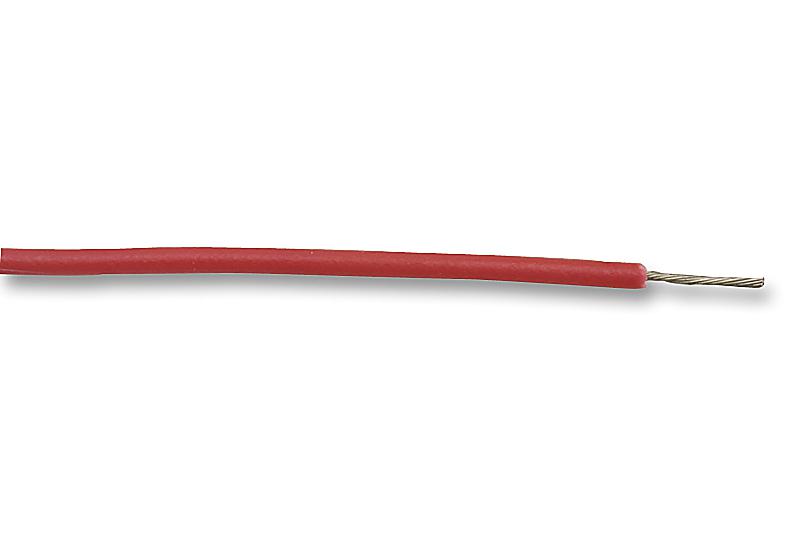

ALPHA WIRE - 5856 RD005 - Wire, Stranded, Hook Up, UL1213, PTFE, Red, 20 AWG, 0.62 mm², 100 ft, 30.5 m

  • Jacket Material: PTFE
  • Jacket Colour: Red
  • Wire Gauge: 20AWG
  • Conductor Area CSA: 0.62mm²
  • Reel Length (Imperial): 100ft
  • Reel Length (Metric): 30.5m
  • No. of Max Strands x Strand Size: 19 x 32AWG
  • Voltage Rating: 600V
  • Conductor Material: Silver Plated Copper
  • External Diameter: 1.5mm
  • Approval Specification: MIL-DTL-16878/4 (Type E), UL 1213
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Cable UL Style Number: UL1213
  • Conductor Make-up: 19 / 32AWG
  • Current Rating: 17A
  • Operating Temperature Max: 200°C
  • Operating Temperature Min: -60°C
  • Outer Diameter: 1.5mm
  • Secondary Insulation Colour: Red
  • Secondary Insulation Material: PTFE
  • Voltage Rating VAC: 600V
  • Wire Size: 20AWG
