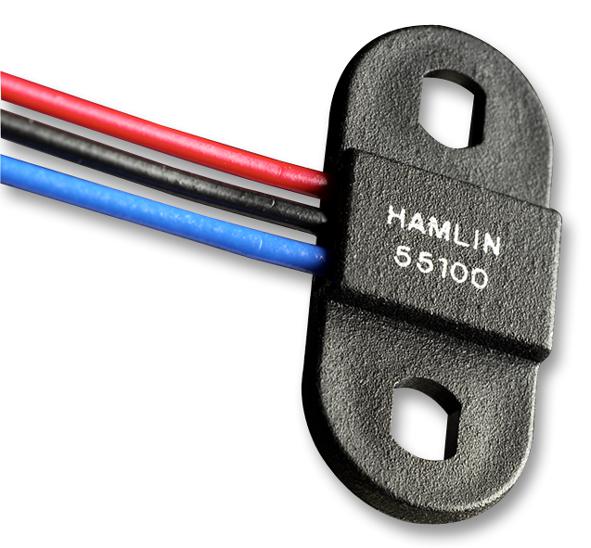

55100-AP-02-A Sensor, Hall Effect, Mini Flange LITTELFUSE

LITTELFUSESKU: 55100-AP-02-A Order code: 5052592

Price:
Sale price€16,13

Tax included Shipping calculated at checkout

Stock:
In stock (604 units), ready to be shipped

Documents et téléchargements

Description

LITTELFUSE - 55100-AP-02-A - Hall Effect Proximity Sensor, Flange Mount, 55100 Series, Analogue, 4.5 to 5.5 VDC

  • Sensing Range Max: -
  • Supply Voltage DC Min: 4.5V
  • Supply Voltage DC Max: 5.5V
  • Sensor Terminals: Cable
  • Output Configuration: -
  • Output Voltage: 350mV
  • Switching Speed: 500µs
  • Product Range: 55110 Series
  • Frequency Response Max: 2kHz
  • Output Current: 1mA
  • Output Voltage Max: 4.65VDC
  • Output Voltage Min: 0.35VDC
  • Sensor Input: Magnetic
  • Supply Voltage Max: 5.5VDC
  • Supply Voltage Min: 4.5VDC
  • Supply Voltage Range DC: 4.5V to 5.5V
  • Switching Frequency: 2 kHz
